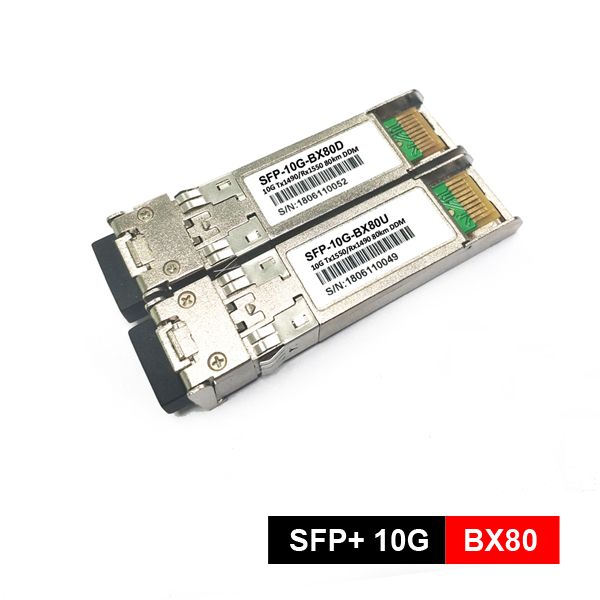

Custom 10.6Gbps 10G SFP+ BIDI 80km BidI Transceiver with 1490/1550nm, EML+APD, DDM, Simplex LC

Description

Bidirectional Transceiver Features

• Up to 10.6Gbps data links
• 1490nm EML Laser and APD photo-detector for YSP96-B4580
• 1550nm EML Laser and APD photo-detector for YSP96-B5480
• Up to 80kmon 9/125µm SMF
• Simplex LC receptacle optical interface compliant
• Hot pluggable
• All-metal housing for superior EMI performance
• RoHS6 compliant (lead free)
• Operating case temperature: Commercial: -5ºC to +70°C; Extended: -20ºC to +80°C; Industrial: -40ºC to +85°C

10G SFP+ Bidi 80km Applications

• Long distance interconnection of backbone network in the operation mall domain
• Cross city (and even cross city) data center interconnection
• Cross regional backbone links in large industrial parks

Standards

• Compliant with SFP+ MSA
• Compliant with SFF-8472
• Compatible with IEEE802.3ae

Optical Parameters

Parameter	Symbol	Min.	Typical	Max.	Unit	Note
Transmitter Section
Centre Wavelength	λc	1470	1490	1510	nm	SFP-10G-BX8045
		1530	1550	1570	nm	SFP-10G-BX8054
Spectral Width(-20dB)	Δλ			1	nm
Side Mode Suppression Ratio	SMSR	30			dB
Average Optical Power (avg.)	Pout	0		+5	dBm	1
Laser Off Power	Poff	–	–	-30	dBm
Extinction Ratio	ER	7.5	–	–	dB	2
Relative Intensity Noise	RIN	–	–	-128	dB/Hz
Optical Rise/Fall Time	tr / tf		–	50	ps	3
Optical Return Loss Tolerance		–	–	12	dB
Output Optical Eye	Compliant with IEEE802.3ae eye masks when filtered					2
Receiver Section
Receiver Center Wavelength	λc	1530	1550	1570	nm	SFP-10G-BX8045
		1470	1490	1510	nm	SFP-10G-BX8054
Receiver Sensitivity in Average Power	Sen	-23		-7	dBm	4
Los Assert	LOSA	-35	–	–	dBm
Los Dessert	LOSD	–	–	-24	dBm
Los Hysteresis	LOSH	0.5	–	5	dB
Overload	Pin-max	–	–	-7	dBm	4
Receiver Reflectance		–	–	-12	dB
Receiver Power (damage)		–	–	-6	dBm

Notes:

1. The optical power is launched into 9/125µm SMF.
2. Measured with a PRBS 2³¹-1test pattern @10.3125Gbps.
3. Unfiltered, 20-80%. Measured with a PRBS 2³¹-1test pattern @10.3125Gbps.
4. Measured with a PRBS 2³¹-1test pattern @10.3125Gbps, ER=8dB, BER <10^-12.

Ordering Information

Part Number	Product Description
SFP-10G-BX8045	TX 1490nm, RX 1550nm, 10Gbps, 80km, Bi-Directional Simplex LC SFP+ Transceiver, -5ºC ~ +70ºC, With DDM.
SFP-10G-BX8045E	TX 1490nm, RX 1550nm, 10Gbps, 80km, Bi-Directional Simplex LC SFP+ Transceiver, -20ºC ~ +80ºC, With DDM.
SFP-10G-BX8045T	TX 1490nm, RX 1550nm, 10Gbps, 80km, Bi-Directional Simplex LC SFP+ Transceiver, -40ºC ~ +85ºC, With DDM.
SFP-10G-BX8054	TX 1550nm, RX 1490nm, 10Gbps, 80km, Bi-Directional Simplex LC SFP+ Transceiver, -5ºC ~ +70ºC, With DDM.
SFP-10G-BX8054E	TX 1550nm, RX 1490nm, 10Gbps, 80km, Bi-Directional Simplex LC SFP+ Transceiver, -20ºC ~ +80ºC, With DDM.
SFP-10G-BX8054T	TX 1550nm, RX 1490nm, 10Gbps, 80km, Bi-Directional Simplex LC SFP+ Transceiver, -40ºC ~ +85ºC, With DDM.
