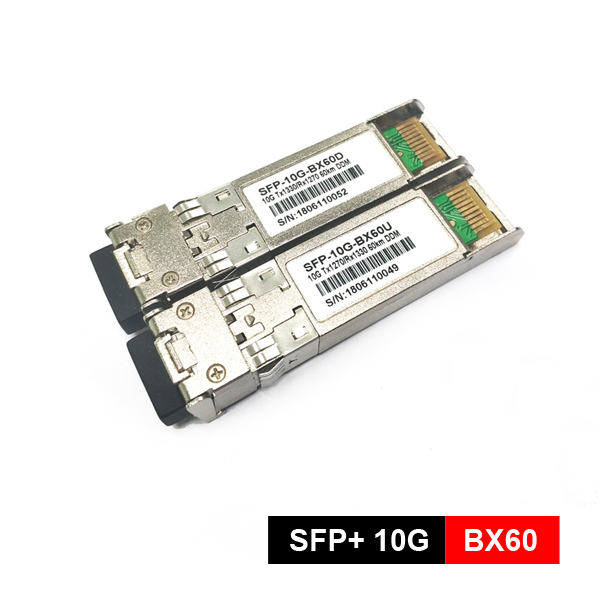

DCI, MAN Access 10.6Gbps 1330/1270nm SFP 10G BIDI, with DFB+APD, Simplex LC, Long Distance 60km SFP 10G BIDI Optical Transceiver, Commercial Temp: 0-75℃

Description

SFP 10G Bidi Features

• Up to 10.6Gbps data links
• 1270nm DFB Laser and APD photo-detector for SFP-10G-BX6073
• 1330nm DFB Laser and APD photo-detector for SFP-10G-BX6037
• Up to 60kmon 9/125µm SMF
• Simplex LC receptacle optical interface compliant
• Hot pluggable
• All-metal housing for superior EMI performance
• RoHS6 compliant (lead free)
• Operating case temperature:Commercial: -5ºC to +70°C; Extended: -20ºC to +80°C; Industrial: -40ºC to +85°C

Bidi Optical Transceiver Applications

• Operational Mall Domain Backbone Network
• Cross city Data Center Interconnection (DCI)
• Large intercity networks converge with outdoor cabinets and base stations
• Industrial Automation Network
• Railway and Intelligent Transportation Systems (ITS)
• Adverse environments such as ocean, oil and gas, mining, etc
• 4G/5G fronthaul network

Standards

• Compliant with SFP+ MSA
• Compliant with SFF-8472
• Compatible with IEEE802.3ae

Optical Parameters

Parameter	Symbol	Min.	Typical	Max.	Unit	Note
Transmitter Section
Centre Wavelength	λc	1260	1270	1280	nm	SFP-10G-BX6073
		1320	1330	1340	nm	SFP-10G-BX6037
Spectral Width(-20dB)	Δλ			1	nm
Side Mode Suppression Ratio	SMSR	30			dB
Average Optical Power (avg.)	Pout	1		+5	dBm	1
Laser Off Power	Poff	–	–	-30	dBm
Extinction Ratio	ER	3.5	–	–	dB	2
Relative Intensity Noise	RIN	–	–	-128	dB/Hz
Optical Rise/Fall Time	tr / tf		–	50	ps	3
Optical Return Loss Tolerance		–	–	12	dB
Output Optical Eye	Compliant with IEEE802.3ae eye masks when filtered					2
Receiver Section
Receiver Center Wavelength	λc	1320	1330	1340	nm	SFP-10G-BX6073
		1260	1270	1280	nm	SFP-10G-BX6037
Receiver Sensitivity in Average Power	Sen	-20		-7	dBm	4
Los Assert	LOSA	-30	–	–	dBm
Los Dessert	LOSD	–	–	-21	dBm
Los Hysteresis	LOSH	0.5	–	5	dB
Overload	Pin-max	–	–	-7	dBm	4
Receiver Reflectance		–	–	-12	dB
Receiver Power (damage)		–	–	-6	dBm

Notes:

1. The optical power is launched into 9/125µm SMF.
2. Measured with a PRBS 2³¹-1test pattern @10.3125Gbps.
3. Unfiltered, 20-80%. Measured with a PRBS 2³¹-1test pattern @10.3125Gbps.
4. Measured with a PRBS 2³¹-1test pattern @10.3125Gbps, ER=4dB, BER <10^-12.

Ordering Information

Part Number	Product Description
SFP-10G-BX6073	TX 1270nm, RX 1330nm, 10Gbps, 60km, Bi-Directional Simplex LC SFP+ Transceiver, -5ºC ~ +70ºC, With DDM.
SFP-10G-BX6073E	TX 1270nm, RX 1330nm, 10Gbps, 60km, Bi-Directional Simplex LC SFP+ Transceiver, -20ºC ~ +80ºC, With DDM.
SFP-10G-BX6073T	TX 1270nm, RX 1330nm, 10Gbps, 60km, Bi-Directional Simplex LC SFP+ Transceiver, -40ºC ~ +85ºC, With DDM.
SFP-10G-BX6037	TX 1330nm, RX 1270nm, 10Gbps, 60km, Bi-Directional Simplex LC SFP+ Transceiver, -5ºC ~ +70ºC, With DDM.
SFP-10G-BX6037E	TX 1330nm, RX 1270nm, 10Gbps, 60km, Bi-Directional Simplex LC SFP+ Transceiver, -20ºC ~ +80ºC, With DDM.
SFP-10G-BX6037T	TX 1330nm, RX 1270nm, 10Gbps, 60km, Bi-Directional Simplex LC SFP+ Transceiver, -40ºC ~ +85ºC, With DDM.
