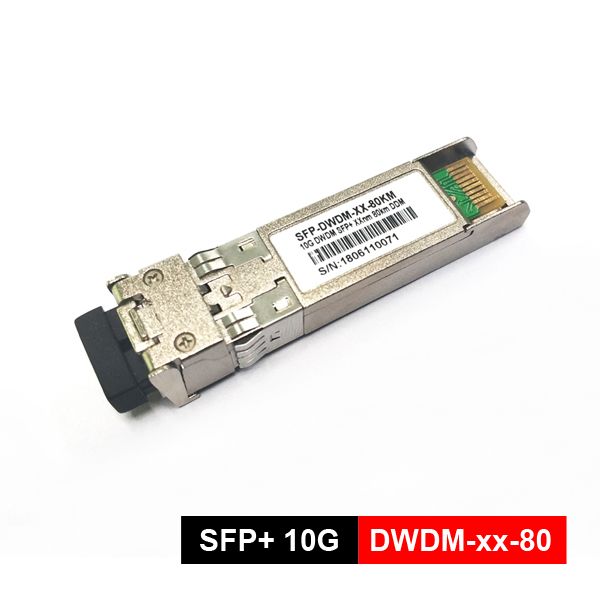

10G Single Mode Tunable DWDM SFP+ Transceivers 80km, C Band 1525 to 1565nm,L Band 1570 to 1610nm, With DDM LC Duplex Fiber

Description

DWDM SFP+ Transceiver Features

• Up to 11.3Gbps data links
• DWDM EML Laser and PIN photo-detector
• Up to 40kmon 9/125µm SMF
• Duplex LC receptacle optical interface compliant
• Hot pluggable transceiver module
• All-metal housing for superior EMI performance
• RoHS6 compliant (lead free)
• Operating case temperature: Commercial: -5ºC to +70°C; Extended: -20ºC to +80°C

DWDM Transceiver Application

• Cross city backbone network connection (Long haul Metro)
• Disaster Recovery Data Center Interconnection (Remote DCI)
• Complex links with significant fiber loss
• Cooperate with EDFA’s ultra long distance transmission

Standards

• Compliant with SFP+ MSA
• Compliant with SFF-8472
• Compatible with IEEE802.3ae

DWDM SFP+ Optical Parameters

Parameter	Symbol	Min.	Typical	Max.	Unit	Note
Transmitter Section
Centre Wavelength	λc	λc -0.1	λc	λc +0.1	nm
Center Wavelength Spacing			100		GHZ
Spectral Width(-20dB)	Δλ			0.3	nm
Side Mode Suppression Ratio	SMSR	30			dB
Average Optical Power (avg.)	Pout	-1		+3	dBm	1
Laser Off Power	Poff	–	–	-30	dBm
Extinction Ratio	ER	8.2	–	–	dB	2
Relative Intensity Noise	RIN	–	–	-128	dB/Hz
Transmitter Dispersion Penalty	TDP			3	dB
Optical Rise/Fall Time	tr / tf		–	50	ps	3
Optical Return Loss Tolerance		–	–	12	dB
Output Optical Eye	Compliant with IEEE802.3ae eye masks when filtered					2
Receiver Section
Receiver Center Wavelength	λc	1260		1620	nm
Receiver Sensitivity in Average Power	Sen	-16		-1	dBm	4
Los Assert	LOSA	-30	–	–	dBm
Los Dessert	LOSD	–	–	-17	dBm
Los Hysteresis	LOSH	0.5	–	5	dB
Overload	Pin-max	–	–	-1	dBm	4
Receiver Reflectance		–	–	-12	dB
Receiver Power (damage)		–	–	1.5	dBm

Note:

1. The optical power is launched into 9/125µm SMF.
2. Measured with a PRBS 2³¹-1test pattern @10.3125Gbps.
3. Unfiltered, 20-80%. Measured with a PRBS 2³¹-1test pattern @10.3125Gbps.
4. Measured with a PRBS 2³¹-1test pattern @10.3125Gbps, ER=4dB, BER <10^-12.

Mechanical Dimension

Order Information

Part Number	Product Description
SFP-10G-DWDM-40km	DWDM-XX, 10Gbps, 40km, Duplex LC DWDM SFP+ Transceiver, -5ºC ~ +70ºC, With DDM.
SFP-10G-DWDM-40kmE	DWDM-XX, 10Gbps, 40km, Duplex LC DWDM SFP+ Transceiver, -20ºC ~ +80ºC, With DDM.
SFP-10G-DWDM-40kmT	DWDM-XX, 10Gbps, 40km, Duplex LC DWDM SFP+ Transceiver, -40ºC ~ +85ºC, With DDM.
SFP-10G-DWDM-80km	DWDM-XX, 10Gbps, 80km, Duplex LC DWDM SFP+ Transceiver, -5ºC ~ +70ºC, With DDM.
SFP-10G-DWDM-80kmE	DWDM-XX, 10Gbps, 80km, Duplex LC DWDM SFP+ Transceiver, -20ºC ~ +80ºC, With DDM.
SFP-10G-DWDM-80kmT	DWDM-XX, 10Gbps, 80km, Duplex LC DWDM SFP+ Transceiver, -40ºC ~ +85ºC, With DDM.

XX=DWDM Wavelength Order List

Code	Frequency (THz)	Center Wavelength(nm)	Code	Frequency (THz)	Center Wavelength(nm)
C17	191.7	1563.86	C40	194.0	1545.32
C18	191.8	1563.05	C41	194.1	1544.53
C19	191.9	1562.23	C42	194.2	1543.73
C20	192.0	1561.42	C43	194.3	1542.94
C21	192.1	1560.61	C44	194.4	1542.14
C22	192.2	1559.79	C45	194.5	1541.35
C23	192.3	1558.98	C46	194.6	1540.56
C24	192.4	1558.17	C47	194.7	1539.77
C25	192.5	1557.36	C48	194.8	1538.98
C26	192.6	1556.55	C49	194.9	1538.19
C27	192.7	1555.75	C50	195.0	1537.40
C28	192.8	1554.94	C51	195.1	1536.61
C29	192.9	1554.13	C52	195.2	1535.82
C30	193.0	1553.33	C53	195.3	1535.04
C31	193.1	1552.52	C54	195.4	1534.25
C32	193.2	1551.72	C55	195.5	1533.47
C33	193.3	1550.92	C56	195.6	1532.68
C34	193.4	1550.12	C57	195.7	1531.90
C35	193.5	1549.32	C58	195.8	1531.12
C36	193.6	1548.51	C59	195.9	1530.33
C37	193.7	1547.72	C60	196.0	1529.55
C38	193.8	1546.92	C61	196.1	1528.77
C39	193.9	1546.12
