Description
1000BASE-T SFP+ Features
- Supports Links up to 30m using Cat 6A Cable RJ-45 connector assembly
- SFF-8431 and SFF-8432 MSA Compliant
- IEEE 802.3az and 802.3an Compliant
- IEEE 802.3bz for 5G&2.5G BASE-T
- TX Disable and RX Los function
- Fully metallic enclosure for Low EMI Emissions
- +3.3V single power supply& hot-pluggable SFP+ footprint
- Low Power Consumption (2.5W MAX @ 30m)
- Access to physical layer IC via 2-wire serial bus
- XFI/5GBASE-R/2500BASE-X/SGMII, SGMII Auto-Negotiation On
- Auto-negotiates with other 10GBase-T PHYs
- Supports 100/1000Base-T using Cat 5e cable or better
- MDI/MDIX Crossover
- Multiple Loopback Modes for Testing and Troubleshooting
- Built-in Cable Monitoring and Link Diagnostic
- Unshielded and Shielded cable support
- Operating case temperature range of 0℃to +70℃
1000BASE-T SFP+ Module Applications
- 10 Gigabit Ethernet over Cat 6A cable
- 5 Gigabit Ethernet over Cat 6A cable
- 5 Gigabit Ethernet over Cat 6A cable
- 1.25 Gigabit Ethernet over Cat 5e cable
Copper Cable Length
| Standard | Cable | Reach | Host Port |
| 10Gbase-T | CAT6A | 30m | XFI |
| 5Gbase-T/2.5Gbase-t | CAT5E | 50m | 5GBase-R/2.5GBase-X |
| 1000base-T | CAT5E | 100m | 1000base-FX |
Electrical Power Interface
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
| Supply Current | IS | 500 | 757 | mA | ||
| Input Voltage | VCC | 3.13 | 3.3 | 3.47 | V | Referenced to GND |
| Maximum Voltage | Vmax | 3.6 | V |
Low-speed signals, electronic characteristics
| Parameter | Symbol | Min. | Max. | Unit | Note |
| SFP+ Output LOW | VOL | 0 | 0.5 | V | 4.7k to 10k pull-up to host_Vcc, measured at host side of connector |
| SFP+ Output HIGH | VOH | host_Vcc – 0.5 | host_Vcc + 0.3 | V | |
| SFP+ Input LOW | VIL | 0 | 0.8 | V | 4.7k to 10k pull-up to Vcc, measured at SFP side of connector |
| SFP+ Input HIGH | VIH | 2 | Vcc + 0.3 | V |
High-speed electrical interface, transmission line-SFP+
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
| Line Frequency | fL | 800 | MHz | 16-level encoding, per IEEE 802.3 | ||
| Tx Output Impedance | Zout,TX | 100 | Ohm | Differential, for all Frequencies between 1MHz and 800MHz | ||
| Rx Input Impedance | Zin,RX | 100 | Ohm |
High-speed electrical interface, host-SFP+
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
| Single Ended Data Input Swing | Vinsing | 500 | 800 | 1100 | mV | |
| Single Ended Data Output Swing | Voutsing | 500 | 800 | 1100 | mV | |
| Rise/Fall Time | Tr,Tf | 25 | 47 | ps | 20%-80% | |
| Tx Input Impedance | Zin | 100 | Ohm | Differential | ||
| Rx Output Impedance | Zout | 100 | Ohm | Differential |

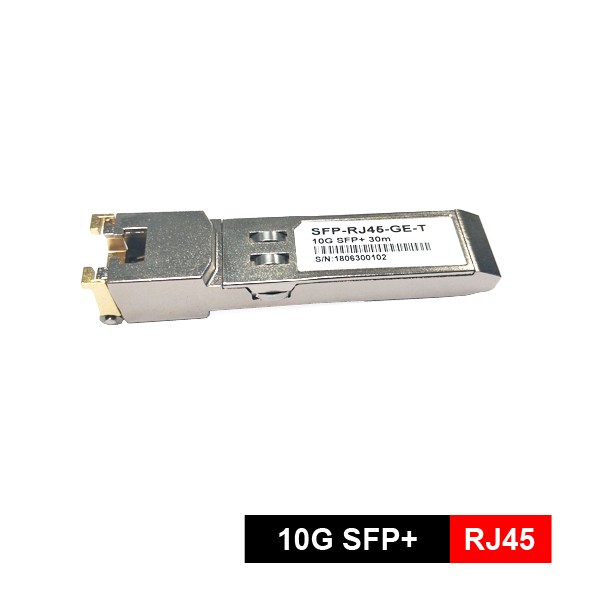

SFP-RJ45-GE-T General specifications
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
| Data Rate | BR | 1 | 10 | Gbps | IEEE 802.3 compatible. | |
| Cable Length | L | 30 | m | Category 6A STP. BER <10-12 |
Notes:
- Clock tolerance is +/- 50 ppm
- By default, the YSP96-Tis a full duplex device in preferred master mode
- Automatic crossover detection is enabled. External crossover cable is not required
Ordering Information
| Part number | Speed mode | MAC interface | TX Disable function | Link Indicator on RX_LOS Pin | Temp |
| SFP-RJ45-GE-T | 10Gbps | XFI/5GBASE-R/2500BAS E-X/SGMII | YES | YES | 0~70℃ |
