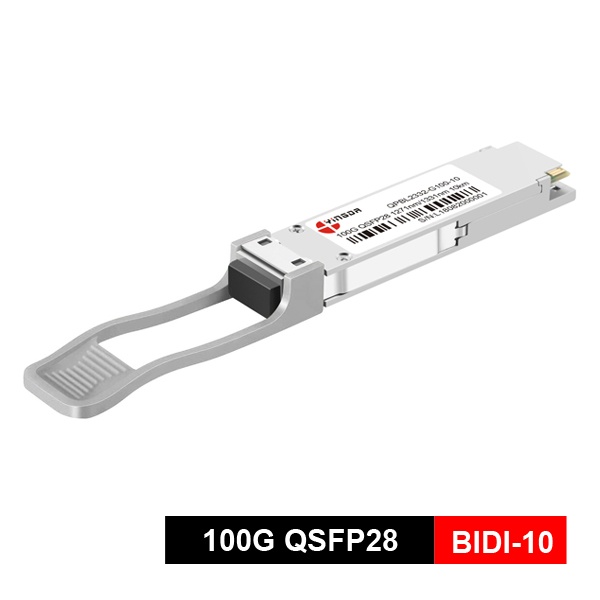

QSFP28 100G BIDI Transceiver LR1 10km, Side A: Tx1270nm/Rx1330nm, Side B:Tx1330nm/Rx1270nm, Simplex LC Receptacle, SMF, with DDM, Built-in 100G PAM4 DSP

Description

Features of bidi transceiver

• Supports 106.25Gb/s PAM4
• Digital Diagnostics Monitoring Interface
• Built-in 100G PAM4 DSP
• Up to 10kmtransmission over SMF
• Hot-pluggableQSFP28 form factor
• 1270nm DFB laser and PINreceiver for AC-QPBL-23G100-10
• 1330nm DFB laser and PIN receiver for AC-QPBL-32G100-10
• BIDI LC receptacle
• Commercial operating case temperature range: 0~ 70ºC
• RoHS-6 compliant
• Power dissipation < 4.5 W
• TDECQ< 3.4dB



Standard

• 100G Lambda MSA 100G-LR specification
• QSFP MSA
• SFF-8636 Rev2.10a



Application

• Metropolitan Area Network/Campus Network: 10km backbone interconnection across buildings.
• 5G Fronthaul/ Midhaul: Scenarios where optical fibers are limited between base stations and aggregation points.
• Expansion of old computer rooms: Upgrade the original 10G/40G dual-core links to two independent 100G links without increasing cabling.



Specification of bidi transceiver

Absolute Maximum Ratings
Parameter	Symbol	Min	Max	Unit
Storage Ambient Temperature	TSTG	-20	85	℃
Operating Humidity	HO	5	85	%
Power Supply Voltage	Vcc	-0.3	3.6	V
Signal Input Voltage		Vcc-0.3	Vcc +0.3	V



Recommended Operating Conditions
Parameter	Symbol	Min	Typical	Max	Unit	Notes
Operating Case Temperature	Tc	0		70	℃
Power Supply Voltage	Vcc	3.13	3.3	3.47	V
Date Rate per Channel (4*25G NRZ)			25.78125		Gbps
Date Rate per Channel (2*50G PAM4)			53.125		Gbps
Bit Error Ratio (BER) with FEC on			10-12			1&2
Bit Error Ratio (BER) without FEC			2.4×10-4			1&2
Fiber Length 9/125μm core SMF		–	–	10	km



Ordering Information

Part. No	Specifications
	Pack	Rate (Gbps)	Tx (nm)	Po (dBm)	RX	Sen (dBm)	Temp (℃)	Reach    (KM)	DDM
QSFP28-100G1-BIDI-10	QSFP28	100G	DFB 1270/1330nm	-1.4~4.5	PIN	<-6.1	0~70	10	Y
QSFP28-100G2-BIDI-10	QSFP28	100G	DFB 1330/1270nm	-1.4~4.5	PIN	<-6.1	0~70	10	Y
