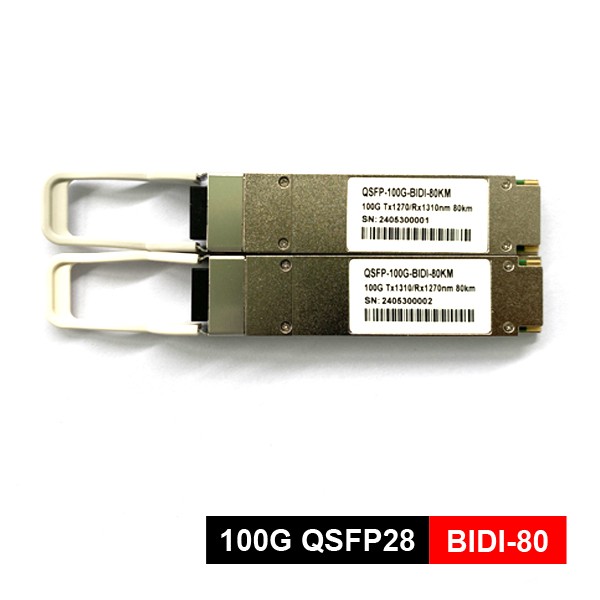

80km QSFP28 100G Bidirectional Fiber Transceiver, Side A: Tx1270/Tx1310nm, Side B: Tx1310/Tx1270nm,

Description

Features of Bidirectional Fiber Transceiver

• Up to 80km reach for G.652 SMF
• Cooled 4x25Gb/s LAN WDM Blue or Red Side TOSA, LAN WDM Red or Blue Side ROSA
• 4x25G Electrical Interface
• Single +3.3V power supply
• DDM function implemented
• 2 Wire Serial Interface for module management
• Maximum power dissipation<5.5W
• Operating temperature range: 0℃ ~ 70℃
• Compliant with RoHS6



Application

• Long-distance fiber leasing: When the cross-city fiber leased by you has only one core and the monthly rent is extremely high, exchanging this expensive module for a 50% reduction in fiber rent is very cost-effective.
• Metropolitan area network backbone interconnection: Used for direct connection of core network nodes within 80 kilometers.



Specification of Bidirectional Fiber Transceiver

Absolute Maximum Ratings
Parameter	Symbol	Min	Max	Unit
Storage Temperature Range	TS	-40	85	℃
Maximum Supply Voltage	Vcc	-0.5	+4	V
Relative Humidity	RH	0	95	%



Recommended Operating Conditions
Parameter	Symbol	Min	Typical	Max	Unit
Operating Case Temperature Range	Tc	0		70	℃
Power Supply Voltage	Vcc	3.14	3.3	3.46	V
Bit Rate	BR			103.1	Gb/s
Bit Error Ratio	BER			5E-5
Max Supported Link Length	L			80	Km



Electric Ports Definition
Parameter	Symbol	Min	Typical	Max	Unit	Notes
Supply Voltage	VCC	3.14	3.3	3.46	V
Module Power dissipation				5500	mW
Transmitter
Parameter	Symbol	Min	Typical	Max	Unit	Notes
Input Differential Impedance	RIN	90	100	110	Ω
Differential Data Input	VIN	35		900	mVp-p
Differential input return loss (min)	RLd	IEEE 802.3ba, Section			dB
Differential to common mode input return loss (min)	RLdc	IEEE 802.3ba, Section			dB
Receiver
Parameter	Symbol	Min	Typical	Max	Unit	Notes
Differential Data Output	VOD			900	mVp-p
AC common mode output voltage (RMS)				17.5	mV
Differential output return loss (min)		IEEE 802.3ba, Section			dB
Common to differential mode conversion return loss		IEEE 802.3ba, Section			dB
Output transition time,20% to80%		12			ps
Vertical eye closure				5.5	dB



Optical Characteristics
Transmitter(per Lane)
Parameter	Symbol	Min		Typ		Max	Unit	Notes
Signaling Speed per Lane		25.78125 ± 100 ppm					GBd
Blue Side Four Lane Wavelength Range (AQPA0RC80KB-J0KS)	λ1	1272.55		1273.55		1274.54	nm
	λ2	1276.89		1277.89		1278.89
	λ3	1281.25		1282.26		1283.27
	λ4	1285.65		1286.66		1287.68
Red Side Four Lane Wavelength Range (AQPA0RC80KB-K0JS)	λ5	1294.53		1295.56		1296.59	nm
	λ6	1299.02		1300.05		1301.09
	λ7	1303.54		1304.58		1305.63
	λ8	1308.09		1309.14		1310.19
Total Average Launch Power	Pout	7				13	dBm	1
Average Launch Power per Lane	TXPx	1				7	dBm	1
Optical Extinction Ratio	ER	6					dB	2
Side-Mode Suppression Ratio (SMSR)	SMSR	30					dB
Average launch power of OFF transmitter, per lane						-30	dBm
Relative Intensity Noise	RIN					-130	dB/Hz
Optical Return Loss Tolerance						20	dB
Transmitter Reflectance						-12	dB
Transmitter Eye mask definition {X1,X2,X3, Y1,Y2,Y3}		{0.25,0.4,0.45,0.25,0.28,0.4}
Receiver(per Lane)
Parameter	Symbol	Min	Typ		Max		Unit	Notes
Signaling Speed per Lane		25.78125 ± 100 ppm
Red Side Four Lane Wavelength Range (AQPA0RC80KB-J0KS)	λ5	1294.53		1295.56		1296.59	nm
	λ6	1299.02		1300.05		1301.09
	λ7	1303.54		1304.58		1305.63
	λ8	1308.09		1309.14		1310.19
Blue Side Four Lane Wavelength Range (AQPA0RC80KB-K0JS)	λ1	1272.55		1273.55		1274.54	nm
	λ2	1276.89		1277.89		1278.89
	λ3	1281.25		1282.26		1283.27
	λ4	1285.65		1286.66		1287.68
Average Receiver Sensitivity per Lane	Rxsens					-27	dBm	3
Average Received Power per Lane	RXPx	-27				-6	dBm
Damage Threshold Per Lane	Pmax	5.5					dBm
Return Loss	RL					-26
LOS De-Assert	LOSD					-27	dBm
Return Loss	RL					-26
LOS De-Assert	LOSD					-27	dBm
