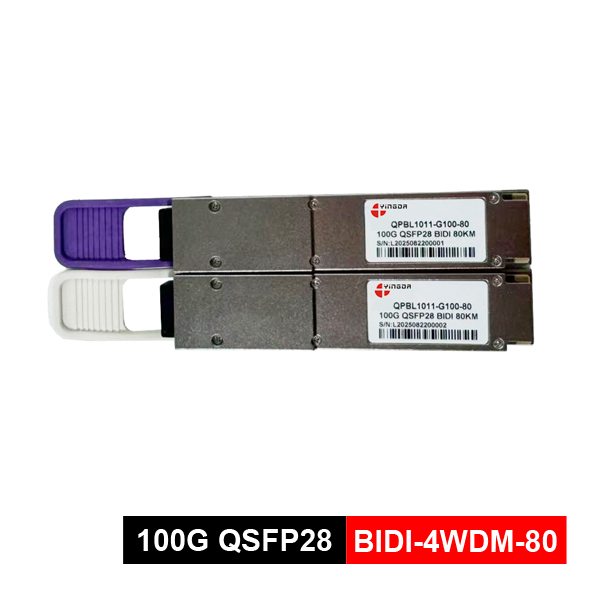

Description
Features of Transceiver BIDI
- Support line rates from 103.125 Gb/s to 112.2 Gb/s OTU4
- Built-in 4-channel Clock and Data Recovery (CDR) in TX and RX
- LAN WDM EML laser and PIN receiver with SOA
- Up to 80km reach for G.652 SMF
- Hot-pluggable 38 pin electrical interface
- QSFP28 MSA compliant
- BIDI LC optical receptacle
- RoHS-10 compliant and lead-free
- Excellent EMI performance
- Single +3.3V power supply
- Maximum power consumption 5.5W
- Operatingcase temperature: Commercial: 0 ~ 70°C; Extended: -5 ~ +85°C; Industrial: -40 ~ +85°C
Application
- Long-distance fiber leasing: When the cross-city fiber leased by you has only one core and the monthly rent is extremely high, exchanging this expensive module for a 50% reduction in fiber rent is very cost-effective.
- Metropolitan area network backbone interconnection: Used for direct connection of core network nodes within 80 kilometers.
Specification
| Parameter | Symbol | Min | Max | Unit | Notes |
| Storage Temperature | Ts | -40 | +85 | ºC | – |
| Supply Voltage | Vcc | -0.3 | 4.0 | V | – |
| Relative Humidity | RH | 15 | 85 | % | – |
| Damage Threshold | THd | 6.5 | – | dBm | – |
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
| Operating Case temperature | TOP | 0 | – | 70 | ºC | Commercial |
| -40 | – | 85 | ºC | Industrial | ||
| Supply Voltage | Vcc | 3.135 | 3.3 | 3.465 | V | – |
| Data Rate Per Lane | – | – | 25.78125 2
| 28.05
| Gb/s | – |
| Control Input Voltage High | – | 2 | – | Vcc | V | – |
| Control Input Voltage Low | – | 0 | – | 0.8 | V | – |
| Link Distance (SMF) | D | – | – | 80 | KM | – |
Ordering Information
| Part Number | Data Rate (Gb/s) | Wavelength (nm) | Reach (km) | Temp (℃) |
| QSFP28-100G-BIDI-4WDM1-80 | 103.1/112 | LWDM1：1273.55, 1277.89, 1282.26, 1286.66 LWDM2： 1295.56, 1300.05, 1304.58, 1309.14 | 80 | 0~70 |
| QSFP28-100G-BIDI-4WDM2-80 | 103.1/112 | 80 | 0~70 | |
| QSFP28-100G-BIDI-4WDM1-80F | 103.1/112 | 80 | -40~85 | |
| QSFP28-100G-BIDI-4WDM2-80F | 103.1/112 | 80 | -40~85 |
