Description

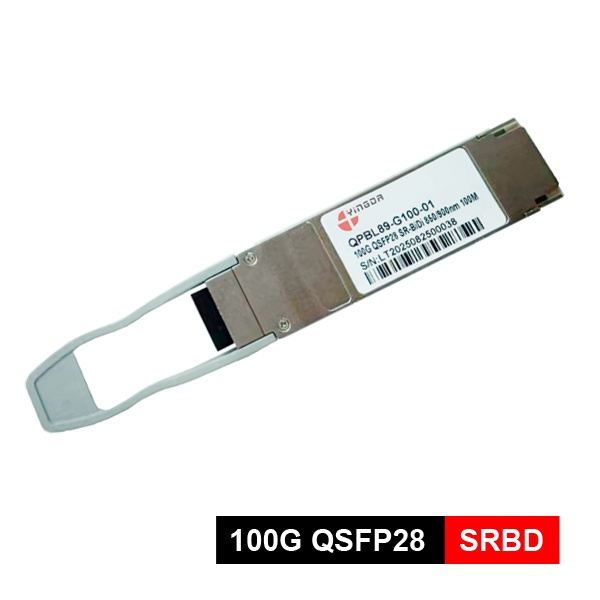

Features of QSFP 100g SRBD
- QSFP28 module form factor
- 125Gbps(26.5625GBd) PAM4 parallel optics architecture
- Bandwidth density of 100Gbps bi-directional
- Duplex LCconnector
- Maximum link length of 100m over OM4,and 70m over OM3
- Built-in digital diagnostic functions
- Operating case temperature range: 0 to 70℃
- Single 3.3V power supply
- Low power consumption < 4W
- RoHS compliant (lead free)
Standard
- QSFP28 MSA
- SFF-8636
Application
- Smooth upgrade, cost savings: SR-BIDI can be directly plugged into the existing 10G/25G lines without the need to dismantle the old lines and deploy expensive 8-core MPO fiber systems. By using dual-mode LC, it significantly reduces the cost of wiring renovation and enables gradual equipment upgrades at the device end, with high flexibility.
- Suitable for “leaf spine” networks: SR-BIDI modules are commonly used for server uplinks in data centers or interconnection of Leaf switches. It can also be downward compatible and work in conjunction with the 400G SR4.2 BIDI module to achieve a branch connection of 1x400G to 4x100G, protecting future investments.
Specification of QSFP 100g SRBD
| Absolute Maximum Ratings | ||||
| Parameter | Symbol | Min | Max | Unit |
| Supply Voltage | Vcc | -0.3 | 3.6 | V |
| Input Voltage | Vin | -0.3 | Vcc+0.3 | V |
| Storage Temperature | Ts | -20 | 85 | ºC |
| Case Operating Temperature | Tc | 0 | 70 | ºC |
| Humidity (non-condensing) | Rh | 5 | 85 | % |
| Recommended Operating Conditions | |||||
| Parameter | Symbol | Min | Typical | Max | Unit |
| Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V |
| Operating Case temperature | Tc | 0 | – | 70 | ºC |
| Signal Rate per Electrical Channel (4 x 25G) | 25.78125 | Gbps | |||
| Signal Rate per Optical Channel (2 x 50G) | 53.125 | Gbps | |||
| Humidity | Rh | 5 | 85 | % | |
| Power Dissipation | Pm | 4 | W | ||
| Fiber Length for OM3 | 70 | m | |||
| Fiber Length for OM3 | 100 | m | |||
| Electrical Characteristics | ||||||
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
| Differential Input Impedance | Zin | 90 | 100 | 110 | ohm | |
| Differential Output Impedance | Zout | 90 | 100 | 110 | ohm | |
| Differential Input Voltage Amplitude1 | ΔVin | – | – | 1200 | mVp-p | |
| Differential Output Voltage Amplitude2 | ΔVout | – | – | 1200 | mVp-p | |
