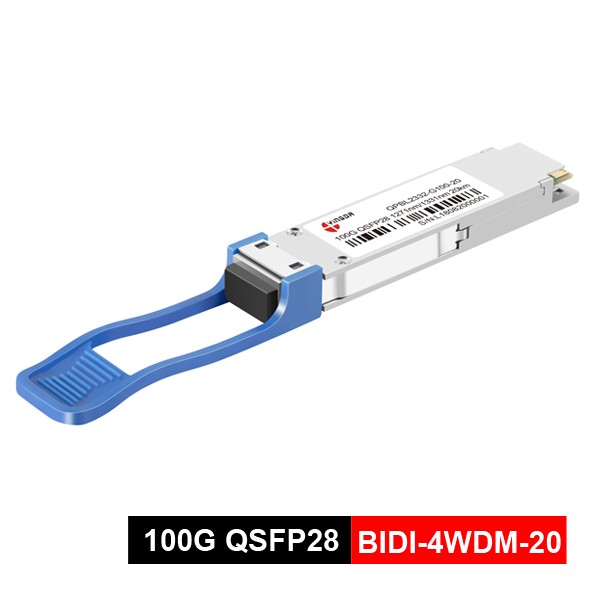

Description
Features of Bidirectional Transceiver
- Lane signaling rate 106.25Gb/s with PAM4
- Up to 20km transmission over SMF
- EML transmitter and PIN receiver
- 78Gb/s NRZ electrical host interface (CAUI-4)
- High speed I/O electrical interface
- Digital diagnostic monitoring (DDM) via I²C
- QSFP28 MSA compliant form factor with simplex LC receptacle
- Single +3.3V power supply
- Support HW TX_DIS and RX_LOS for telecom application
- Maximum power consumption< 4 W
- Operating case temperature: 0 to +70 °C
- Complies with EU Directive 2015/863/EU
Standard
- 100G single Lambda MSA
- IEEE 802.3bm
- QSFP28 MSA
- SFF-8636
Application
- Interconnection across data centers/between buildings: Suitable for interconnection of campus backbone networks with a distance ranging from 10km to 20km.
- Fiber shortage situation: When the existing single-mode fiber conduits are full and an additional 100G bandwidth needs to be expanded, it is the best alternative to the traditional dual-fiber module.
Specification of Bidirectional Transceiver
| Absolute Maximum Ratings | ||||
| Parameter | Symbol | Min | Max | Unit |
| Storage Temperature | Ts | -40 | +85 | ℃ |
| Supply Voltage | Vcc | -0.5 | +4.0 | V |
| Operating Relative Humidity | RH | +85 | % | |
| Recommended Operating Conditions | |||||
| Parameter | Symbol | Min | Typical | Max | Unit |
| Operating Case Temperature | TC | 0 | +70 | °C | |
| Power Supply Voltage | VCC | 3.13 | 3.3 | 3.47 | V |
| Power Supply Current | ICC | 1.15 | A | ||
| Maximum Power Dissipation | PD | 4 | W | ||
| Data Rate(optical) | DRo | 106.25 | Gb/s | ||
| Transmission Distance | TD | 20 | km | ||
| Optical transmitter Characteristics | ||||||
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
| Center Wavelength | CW | 1284.5 | 1291 | 1297.5 | nm | |
| 1304.5 | 1311 | 1317.5 | nm | |||
| Average Launch Power | PTX | -0.2 | 6.6 | dBm | 1 | |
| Outer Optical Modulation Amplitude | OMA | 2.8 | 6.8 | dBm | TEDCQ<1.4 | |
| 1.4+TDECQ | dBm | 1.4≤TDECQ | ||||
| Transmitter and dispersion eye closure for PAM4 (TDECQ) (max) | TDECQ | 3.6 | dBm | |||
| Transmitter eye closure for PAM4 (TECQ) (max) | TECQ | 3.4 | dBm | |||
| |TDECQ-TECQ| (max) | 2.7 | dB | ||||
| Average Output Power (Laser Turn off) | P0UT-OFF | -15 | dBm | |||
| Side Mode Suppression Ratio | SMSR | 30 | – | – | dB | |
| Extinction Ratio | ER | 3.5 | – | – | dB | |
| Optical receiver Characteristics | ||||||
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
| Center Wavelength | CW | 1304.5 | 1311 | 1317.5 | nm | |
| 1284.5 | 1291 | 1297.5 | nm | |||
| Damage threshold | Pdamage | 7.6 | – | dBm | 2 | |
| Average Rx Power | PRX | -10 | 6.6 | dBm | 3 | |
| Receive power_OMAouter | POMA | – | 6.8 | dBm | ||
| Receiver sensitivity _OMAouter | SEN _OMA | -7.6 | dBm | TECQ≤1.4 4 | ||
| -9+TECQ | dBm | 1.4≤TECQ≤3.6 | ||||
| Los Assert | LosA | -26 | dBm | |||
| Los De-Assert | LosDA | -11 | dBm | |||
| Los Hysteresis | LosH | 0.5 | dB | |||
Ordering Information
| Part. No | Specifications | ||||||||
| Pack | Rate (Gbps) | Tx (nm) | Po (dBm) | RX | Sen (dBm) | Temp (℃) | Reach (KM) | DDM | |
| QSFP28-100G-BIDI-4WDM1-20 | QSFP28 | 100G | EML 1291 | -0.2~6.6 | PIN | <-9 | 0~70 | 20 | Y |
| QSFP28-100G-BIDI-4WDM2-20 | QSFP28 | 100G | EML 1311 | -0.2~6.6 | PIN | <-9 | 0~70 | 20 | Y |
