Description
96 Core MPO Fiber Jummper Standards
- Meets IEC Standard 61754-7& JIS C5982
- Structured cabling per TIA-568-C
OM4 MPO Fiber Jumper Features
- Backbone installation
- Choice of either both ends with pins (Male type) or both ends without pins (female type)
- Fiber counts available in 12/24/36/48/72/96/144 fibers
- Round & mini-core cable structure to eliminate bend sensitivity and save space
- Available in single mode G 652 D and G 657, multimode OM2, OM3, OM4, OM5 fiber
- Optional pulling eye design to fit for different installation environment
Parallel Optics
- Optical Internetworking Forum (OIF) Compliant
- Infiniband Compliant
Infiniband
- 10G Fiber Channel Compliant
- 40G,100G, 400G, 800G
- QSFP, QSFP-DD, OSFP
MPO/MTP Trunk Cable Application:
- Optical switching inter-frame connections
- High fiber density card edge access
- Array trunk cables
- Data center cabling
96 Cores Fiber Truck Cable Structure:
MTP/MPO Connector Specification
| Optical Parameters | ||||
| Insertion loss (dB) | SM standard | SM Elite | MM standard | MM Elite |
| ≤0.7 | ≤0.35 | ≤0.7 | ≤0.35 | |
| Return loss(dB) | ≥60 | ≥20 | ||
| Durability (dB) | ≤0.2 500times mating | |||
| Tensile strength(kgf) | 10 | |||
| Working temperature (℃) | -20 ~+70 | |||
| Measurement wavelength(nm) | 1310 | 850 | ||
| Geometry parameters | ||||
| Item | X-axis | Y-axis | ||
| Min | Max | Min | Max | |
| Radius of cruvature (mm) | 500 | – | 50 | – |
| Polishing angle | 0-0.2 | 0+0.2 | 8-0.2 | 8+0.2 |
| Item | Min | Max | ||
| Fiber height (nm) | 1000 | 3000 | ||
| Max fiber height error(nm) | 600 | |||
| Adjacent fiber height error(nm) | -300 | +300 | ||
| Avg. Fiber height error (nm) | -300 | +300 | ||
| Central concave (nm) | 300 | |||

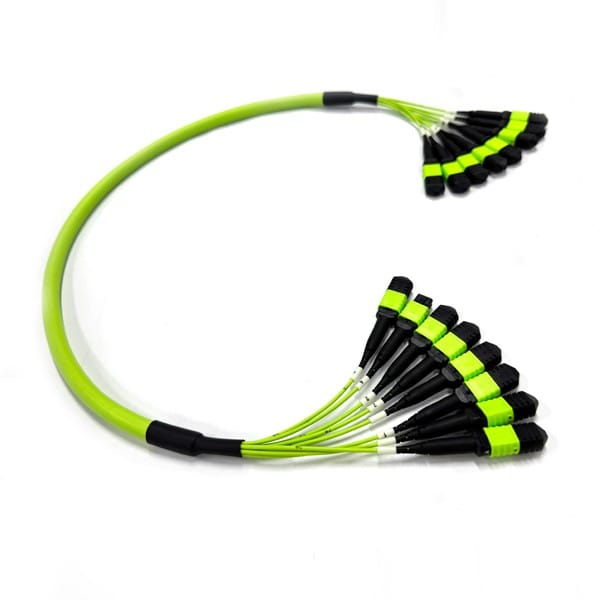

8×12 MPO Fiber Jumper Details
8×12 core MPO fiber jumper (usually refers to a backbone cable wrapped with 8 independent 12 core optical fibers, totaling 96 cores) with factory terminated fiber optic female MPO 12 connectors at both ends. This multimode OM5 MPO to MPO fiber jumper configure with violet LSZH jacket, fanout 30cm 3.0mm pigtails. Yingda will add number ring mark for each fanouts for data center orderly wiring and management.
Each 96 core MPO fiber jumpers contains 8 x 12 core MPO connectors. When selecting, it is important to distinguish between male and female connectors, as well as whether the fiber polarity TYPE A, TYPE B, or TYPE C. Incorrect polarity can result in a blocked link.
