16 Fibers MPO MTP truck cable (2 x 8 Fiber MPO Connector)
16 Fibers MPO MTP truck cable (2 x 8 Fiber MPO Connector)

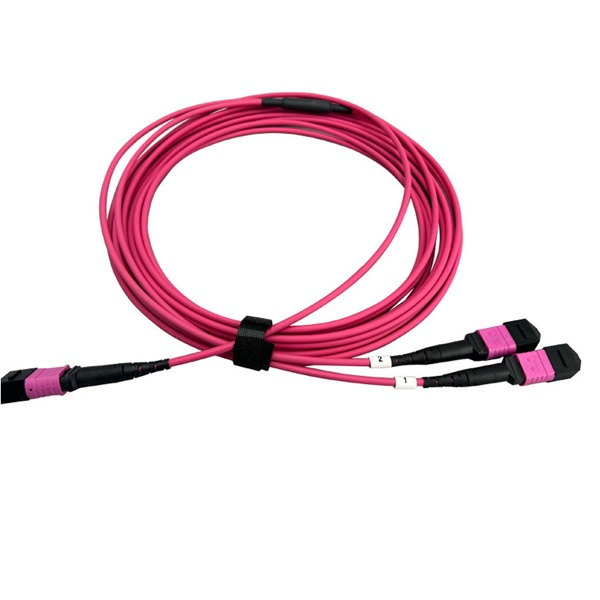

MPO MTP trunk cable, 16 Fibers MTP Breakout into 2 x 8 Fibers MTP FOR 40G 100G Networking, Multimode OM4 OFNP Violet, 2 Mts, Round

MTP Jumper can completely eliminate “idle fiber” in parallel transmission (improve fiber utilization)
In 40G (QSFP+SR4) and 100G (QSFP28 SR4) networks, although the optical module uses a 12 core MPO interface, only 8 cores are actually used (4-core transmission, 4-core reception, and 4 cores in the middle are idle). If a regular 12 core backbone jumper is used directly, each wire will waste 4 cores. By using 2×12 core MPO to 3×8 core MPO (or similar 24 core one to two/one to three conversion) conversion cables/modules at the back end of the patch panel, all cores of the two backbones can be rearranged to perfectly supply three optical modules, achieving 100% full load utilization of optical fibers and significantly saving expensive backbone cable investments.

SKU YDPC-MTP-2MTP-M416-3002-R Category Tags , , ,
Polarity: Type A / Type B / Type C
Fiber Type: OM4 50/125um
Fiber Count: 16 Cores
Connector Type: End A: MPO 16 APC | End B: MPO 8 UPC
Cable Jacket: Rose Red | LSZH | Round
Insertion Loss: Standard Loss / Elite Loss
Request A Quote
live chat

100% 3D/Fluke Tested | US Conec MTP OEM | Custom Length/Polarity

Description

MTP Trunk Cable Standards:

  • Meets IEC Standard 61754-7& JIS C5982
  • Structured cabling per TIA-568-C

MTP Trunk Cable Features

  • Backbone installation
  • Choice of either both ends with pins (Male type) or both ends without pins (female type)
  • Fiber counts available in 12/24/36/48/72/96/144 fibers
  • Round & mini-core cable structure to eliminate bend sensitivity and save space
  • Available in single mode G 652 D and G 657, multimode OM2, OM3, OM4 fiber
  • Optional pulling eye design to fit for different installation environment

Parallel Optics

  • Optical Internetworking Forum (OIF) Compliant
  • Infiniband Compliant

Infiniband

  • 10G Fiber Channel Compliant
  • 40G,100G, 400G, 800G
  • QSFP+

MTP Trunk Cable Application:

  • Optical switching inter-frame connections
  • High fiber density card edge access
  • Array trunk cables
  • Data center cabling

MTP Trunk Cable Structure

1xmpo to 2xmpo cable-16f mtp trunk cable assemblies from yignda

16 Fiber MTP Connector Specification

Optical Parameters
Insertion loss (dB) SM standard SM Elite MM standard MM Elite
≤0.7 ≤0.35 ≤0.7 ≤0.35
Return loss (dB) ≥60 ≥6020
Durability (dB) ≤0.2 500times mating
Tensile strength (kgf) 10
Working temperature (°C) -20 ~+70
Measurement wavelength (nm) 1310 850
Geometry parameters
Item X-axis Y-axis
Min Max Min Max
Radius of cruvature (mm) 500 – 50 –
Polishing angle 0-0.2 0+0.2 8-0.2 8+0.2
Item Min Max
Fiber height (nm) 1000 3000
Max fiber height error (nm) 600
Adjacent fiber height error (nm) -300 +300
Avg. Fiber height error (nm) -300 +300
Central concave (nm) 300



Additional information

Insertion Loss

Standard Loss, Elite Loss
Polarity

Type A, Type B, Type C
Fiber Type

OM4 50/125um
Fiber Count

16 Cores
Connector Type

End A: MPO 16 APC, End B: MPO 8 UPC
Cable Jacket

Rose Red, LSZH, Round
