Description

Features of 400g zr transceiver

• Compliant with QSFP-DD MSA, Type 2B package
• Compliant with Open ZR+ MSA and OIF 400ZR MSA, supporting OFEC and CFEC FEC
• Line rate: 100G/200G/300G/400G
• Client rate: 1/2/3/4x100GbE or 1x400GbE
• C-band tunable laser, supports 100/75/50GHz grid spacing with 0.1GHz fine-tuning
• Integrated EDFA for high output power: up to +4 dBm @193.7 THz, +1 dBm across C-band
• TX VOA inside, output power -10~1dBm tunable
• Supports ingress LF hold-off time configure
• Supports hitless firmware upgrade
• Compact dimensions: 18.35 mm x 93.26 mm x 8.50 mm
• Duplex LC connector
• Operating case temperature: 0℃to 75℃
• Single +3.3V power supply
• Power consumption: 22W typical, 22.5W maximum (at 400GbE)​
• RoHS 2 compliant



Standard

• Open ZR+ MSA 2.0 and OIF-400ZR-02.0
• OIF-CMIS-05.2
• IA OIF-C-CMIS-01.2
• QSFP-DD-Hardware-Rev6.3
• IEEE Std 802.3-2018



Application

• The ZR Pro module is mainly deployed in scenarios requiring long-distance and high-bandwidth connections, aiming to simplify the network layer and achieve a flat architecture of IP over DWDM;
• Metropolitan Area Data Center Interconnection (DCI);
• Regional/Long-haul Backbone Network;
• 5G Transport Network Core Layer.



Specification of 400g zr transceiver

Absolute Maximum Ratings
Parameter	Symbol	Min	Typical	Max	Unit	Note
Storage temperature	Ts	-40		85	℃
Power supply	Vcc	-0.3	3.3	3.6	V	not damaged
Relative humidity	RH	5		85	%	Non-condensing
Receiver damage threshold	PRdmg	10			dBm	Total optical power
ESD Sensitivity				1000	V



Recommended Operating Conditions
Parameter			Symbol	Min	Typical	Max	Unit	Note
Case Temperature			TC	0		+75	°C
Power supply voltage			VCC	3.135	3.3	3.465	V
			ICC			7.2	A	Note1
Maximum sustained peak Current(<500ms)						7.4	A
Maximum	Instantaneous					9	A
	peak current(<50us)
Electro-Static discharge			ESD			1000	V
Power Consumption			PD		22	22.5	W	Note1
Relative humidity			RH	15		85	%
Client Mode		400G (400ZR)		1 x 400GAUI-8
				4 x 100GAUI-2
		400G (400ZR+)		1 x 400GAUI-8
				4 x 100GAUI-2
		300G (300ZR+)		3 x 100GAUI-2
		200G (200ZR+)		2 x 100GAUI-2
				2 x CAUI-4				Note2
		100G (100ZR+)		1 x 100GAUI-2
				1 x CAUI-4				Note2
Transmission Distance (single wavelength unamplified)			400G ZR-			60	Km	Note3
Power Supply Noise			Vrip			1%	DC-1MHz
						2%	1-10MHz



Ordering Information

Part. No	Specifications
	Pack	Rate (Gbps)	Tx (nm)	Po (dBm)	RX	Sen (dBm)	Temp (℃)	Reach    (KM)	DDM

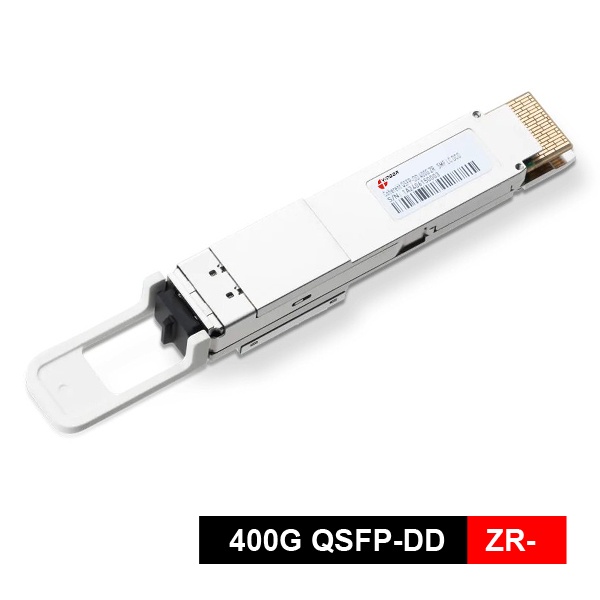

QSFP-DD-400G-ZR- Pro Coherent	QSFP-DD	400G	C-band tunable laser	-10~1	PIN	<-18	0~75	60	Y
