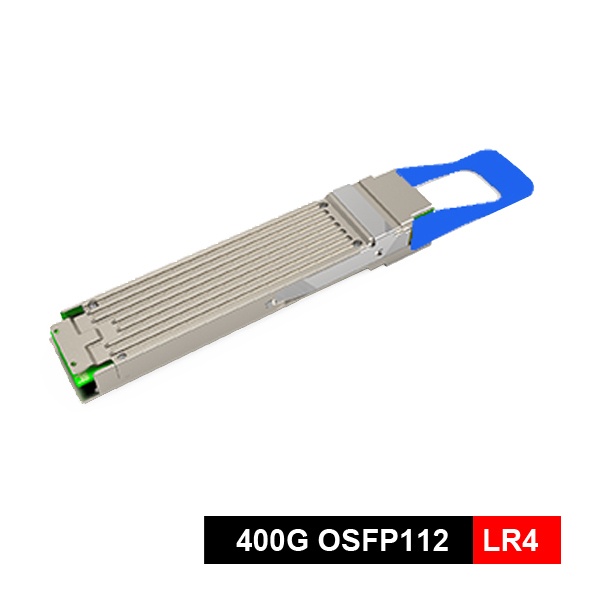

Description

Features of 400g osfp

• OSFP MSA 5.0 and CMIS 5.1 compliant
• Single MPO-12/APC optical connector
• 25Gbps (53.125GBd PAM4) electrical interface
• 25Gbps (53.125GBd PAM4) optical interface
• Up to 10km over SMF
• Power dissipation ≤9W
• Operating case temperature: 0°Cto 70°C
• IEEE 802.3ck and IEEE 802.3cu compliant
• Built-in digital diagnostic functions
• 3V power supply voltage
• RoHS compliant



Standard

• OSFP MSA 5.0 and CMIS 5.1
• IEEE 802.3ck and IEEE 802.3cu



Application

• Hyperscale DC: Used for Spine-Leaf or core layer uplink in 400G/800G network architectures.
• AI/High Performance Computing (HPC) clusters: Due to the elimination of the Gearbox chip, its lower latency makes it highly suitable for AI training tasks.
• Metro and campus backbone: Connects different building complexes within a 10km range.



Specification of 400g osfp

Absolute Maximum Ratings
Parameter	Symbol	Min	Max	Unit
Supply Voltage	VCC	-0.5	3.6	V
Storage Temperature	Tsto	-40	85	°C
Relative Humidity (Non- condensing	RH	5	95	%
Control Input Voltage	Vi	-0.3	VCC+0.5	V



Recommended Operating Conditions
Parameter	Symbol	Min	Typical	Max	Unit
Power Supply Voltage	VCC	3.135	3.3	3.465	V
Case Operating Temperature	Top	0		70	ºC
Relative Humidity (Non- condensing)	RH	15		85	%
9/ 125um G.652 SMF			100	400	kHz





Electrical Characteristics
Parameter	Symbol	Min	Typical	Max	Unit
Power Supply Current	Icc			2875	mA
Power On Initialization Time	Tinit			2000	ms
Transmitter
Signaling Speed, each lane			53.125		GBd
Signaling Speed Tolerance		-100		+100	ppm
Differential pk-pk input voltage tolerance	Vin,pp	750			mV
AC common-mode RMS voltage tolerance		25			mV
Differential Input Impedance	Zin	90	100	110	Ohms
Effective return loss	ERL	8.5			dB
Single-ended voltage tolerance range		-0.4		303	V
DC Common Mode Voltage		-0.35		2.85	V
Receiver
Signaling Speed, each lane			53.125		GBd
Signaling Speed Tolerance		-100		+100	ppm
Differential pk-pk output voltage Short mode Long mode	Vout,pp			600 845	mV
Eye Height	EH			15	mV
Differential Input Impedance	Zout	90	100	110	Ohms
Transition Time, 20% to 80%	Tr, Tf	8.5			ps
DC Common Mode Voltage		-0.35		2.85	V
AC Common Mode output Voltage (RMS)		25			mV





Optical Characteristics
Parameter	Symbol	Min	Typical	Max	Unit	Notes
Transmitter
Signaling Speed			53.125		GBd	1
Signaling Speed Tolerance		-100		+100	ppm
Modulation Format		PAM4
Wavelength	l	1304.5	1311	1317.5	nm
Side Mode Suppression Ratio	SMSR	30			dB
Average TX Power	Pavg	-1.9		4.8	dBm	1
Outer Optical Modulation Amplitude for TDECQ < 1.4dB For 1.4dB≤TDECQ≤ 3.4dB	OMAouter	-1.1- 0.3+TDECQ		5	dBm	1,2
Extinction Ratio	ER	3.5			dB	1
Avg Launch Power TX Off	Poff			-15	dBm	1
Transmitter & Dispersion Eye Closure	TDECQ			3.4	dB	1
Transmitter eye closure	TECQ			3.4	dB	1
|TDECQ – TECQ|				2.5	dB
Transmitter transition time				17	ps
Relative Intensity Noise	RIN			-136	dB/Hz
Optical Return Loss Tolerance	ORLT			15.6	dB
Reflectance				-26	dB
Receiver
Signaling Speed			53.125		GBd	1
Signaling Speed Tolerance		-100		+100	ppm
Modulation Format		PAM4
Wavelength	l	1304.5	1311	1317.5	nm
Damage Threshold		5.8			dBm	1
Average RX Power		-8.2		4.8	dBm	1
RX Power (OMAouter)				5	dBm
RX Reflectance				-26	dBm
RX Sensitivity (OMAouter) for TECQ < 1.4dB for 1.4dB ≤TECQ ≤ 3.4dB	Sen- OMA			-6.1 – 7.5+TECQ	dBm	3
Stressed RX Sensitivity (OMAouter)				-4.1	dBm	1
Conditions of Stressed RX Sensitivity Test
Stressed Eye Closure, lane under test	SECQ	3.4			dB
OMAouter of Each Agressor Lane		/			dBm
