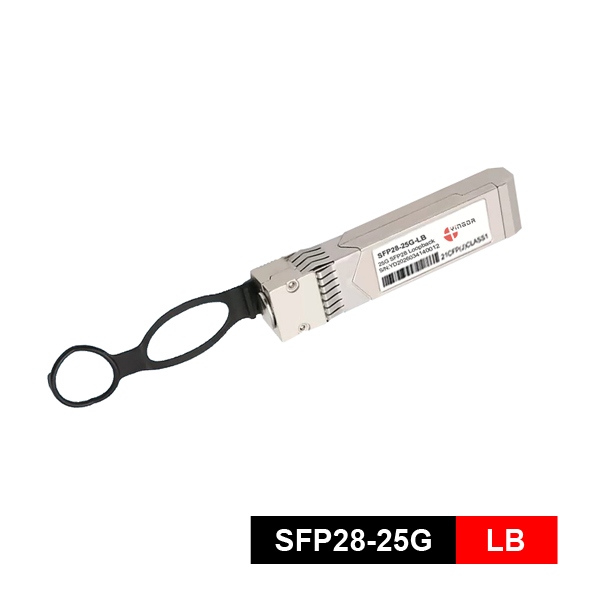

Hot pluggable 25G SFP28 Loopback Module, Internal Electrical Loopback, SFP+ Electrical Interface,Supports 1.25~28.2Gbps Bit Rates and CDR bypass

Description

Features of 25G SFP28 Loopback Module

• SFP+ Electrical interface
• Supports 1.25~28.2Gbpsbit rates, CDR bypass is supported
• Internal electrical loop back
• Hot pluggable
• All-metal housing for superior EMI performance
• SFP+ Mechanical MSA SFF-8432 Compliant
• RoHS6 compliant (lead free)
• Operating case temperature: Commercial: -5ºC to +70°C; Extended: -20ºC to +80°C; Industrial: -40ºC to +85°C



Application

• Switch/NIC/router test: Conduct compliance verification of SFP ports during the development and manufacturing stages of the board cards;
• Troubleshooting: Determine whether it is a physical fault of the port or a fault of the optical fiber link;
• System verification: Test the performance of the equipment under high-speed signals.



Absolute Maximum Ratings

Parameter	Symbol	Min.	Typical	Max.	Unit
Power Supply Voltage	VCC	0		3.6	V
Storage Temperature	Ts	-40		+85	°C
Relative Humidity	RH	0		85	%



Recommended Operating Environment

Parameter		Symbol	Min.	Typical	Max.	Unit
Power Supply Voltage		VCC	3.13	3.3	3.46	V
Power Supply Current		ICC			400	mA
Operating Case Temperature	Commercial	TC	-5		+70	°C
	Extended		-20		+80
	Industrial		-40		+85
Data Rate			1		28.2	Gbps

Electrical Characteristics

Parameter	Symbol	Min.	Typical	Max.	Unit	Note
Transmitter Section
Input Differential Impedance	Rin	90	100	110	Ω
Differential Data Input Swing	Vin PP	200		900	mV	1
Transmit Disable Voltage	VD	Vcc – 1.3		Vcc	V
Transmit Enable Voltage	VEN	Vee		Vee+ 0.8	V
Receiver Section
Differential Data Output Swing	Vout PP	400		900	mV
LOS Fault	Vlos fault	Vcc – 0.5		Vcc_host	V	2
LOS Normal	Vlos norm	Vee		Vee+0.5	V	2
