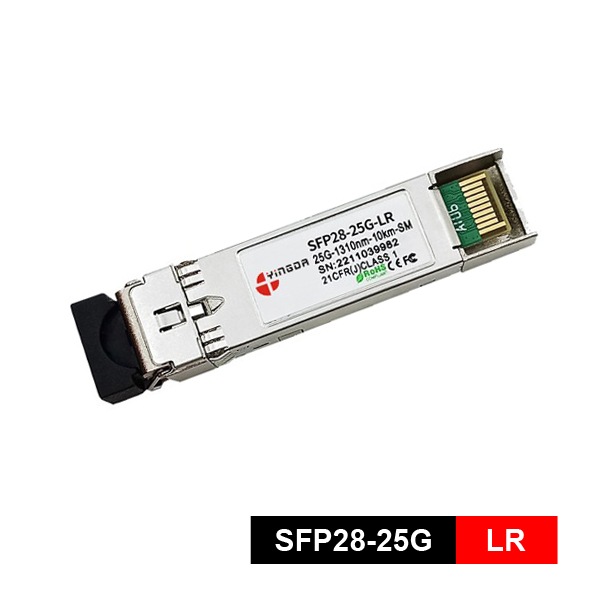

Custom 25G SFP28 LR 10km Single Mode Pluggable Transceiver Module,1310nm Duplex LC Connector, with DDM, Industrial Temp -40℃~+85℃

Description

25G SFP28 LR Application

• Internal and interconnection of data centers;
• 5G wireless fronthaul network;
• Enterprise networks and campus networks;
• High-performance computing and specialized interconnection.

25G SFP28 Transceiver Optical Parameters

Parameter	Symbol	Min.	Typical	Max.	Unit	Note
Transmitter Section
Centre Wavelength	λc	1295	1310	1325	nm
Spectral Width(-20dB)	Δλ			1	nm
Side Mode Suppression Ratio	SMSR	30			dB
Average Optical Power (avg.)	Pout	-3		+6.0	dBm	1
Laser Off Power	Poff	–	–	-20	dBm
Extinction Ratio	ER	4	–	–	dB	2
Relative Intensity Noise	RIN	–	–	-130	dB/Hz
Transmitter and Dispersion Penalty	TDP		–	2.7	dB
Optical Return Loss Tolerance		–	–	20	dB
Output Optical Eye	Compliant with IEEE802.3cc eye masks when filtered					2
Receiver Section
Receiver Center Wavelength	λc	1295	1310	1325	nm
Receiver in Average Power		-20		-4	dBm
Receiver sensitivity(OMA)	Sen			-17	dBm	3
Los Assert	LOSA	-30	–	–	dBm
Los Dessert	LOSD	–	–	-21	dBm
Los Hysteresis	LOSH	0.5	–	5	dB
Receiver Reflectance		–	–	-26	dB
Receiver Power (damage)		–	–	-3	dBm

Notes:

1. The optical power is launched into 9/125µm SMF.
2. Measured with a PRBS 2³¹-1test pattern @25.78Gbps.
3. 3. Measured with a PRBS 2³¹-1test pattern @78Gbps, ER=4.8dB, BER <10^–6.

Mechanical Dimension

Transceiver Optical Fiber Features

• Supports 24.3Gbps to 26.5Gbps bit rates
• 1310nm DFB Laser and APD photo-detector
• Up to 40kmon 9/125µm SMF
• Duplex LC receptacle optical interface compliant
• Hot pluggable fiber transceivers
• All-metal housing for superior EMI performance
• RoHS6 compliant (lead free)
• Operating case temperature:Commercial: -5ºC to +70°CExtended: -20ºC to +80°CIndustrial: -40ºC to +85°C

SFP 25G SR S Application

• 25G Ethernet
• eCPRI

Standards

• Compliant with INF-8431
• Compliant with SFF-8472
• Compatible with IEEE802.3cc

Ordering Information

Part Number	Product Description
SFP28-25G-LR	1310nm, 25Gbps, 10km, Duplex LC SFP28 Transceiver, -5ºC ~ +70ºC, With DDM.
SFP28-25G-LRE	1310nm, 25Gbps, 10km, Duplex LC SFP28 Transceiver, -20ºC ~ +80ºC, With DDM.
SFP28-25G-LRT	1310nm, 25Gbps, 10km, Duplex LC SFP28 Transceiver, -40ºC ~ +85ºC, With DDM.
