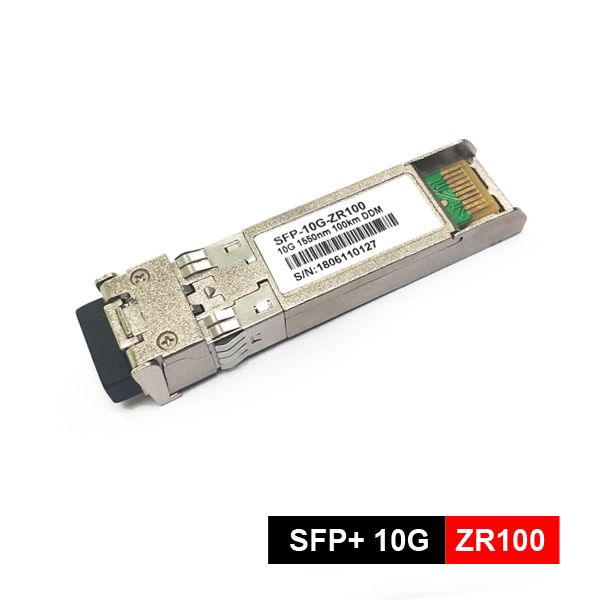

10G SFP+ Module ZR100 1550nm EML+APD, 100km≤ 1.6W Consumption, SM Dual LC Interface, 10G ZR Optics, up to 11.3Gbps Data Links in -40°C ~ +85°C Outdoor Cabinet

Description

10G SFP+ Module Features

• Supports 9.95Gbps to 13Gbps data links
• 1550nm cooled EML Laser and APD photo-detector
• Up to 100kmon 9/125µm single mode fiber
• Duplex LC receptacle optical interface compliant
• Hot pluggable transceivers
• All-metal housing for superior EMI performance
• RoHS6 compliant (lead free)
• Operating case temperature: Commercial: -5ºC to +70°C;  Extended: -20ºC to +80°C; Industrial: -40ºC to +85°C

10G SFP+ Module Application

• 10GBASE-ZR/ZW
• STM-64 L-64.2/L-64.3

SFP+ ZR100 Module Standards

• Compliant with SFP+ MSA
• Compliant with SFF-8472
• Compatible with IEEE802.3ae

10G SFP+ Module Optical Parameters

Parameter	Symbol	Min.	Typical	Max.	Unit	Note
Transmitter Section
Centre Wavelength	λc	1530	1550	1565	nm
Spectral Width(-20dB)	Δλ			1	nm
Side Mode Suppression Ratio	SMSR	30			dB
Average Optical Power (avg.)	Pout	-1		+4	dBm	1
Laser Off Power	Poff	–	–	-30	dBm
Extinction Ratio	ER	8.2	–	–	dB	2
Relative Intensity Noise	RIN	–	–	-128	dB/Hz
Transmitter Dispersion Penalty	TDP			3	dB
Optical Rise/Fall Time	tr / tf		–	50	ps	3
Optical Return Loss Tolerance		–	–	12	dB
Output Optical Eye	Compliant with IEEE802.3ae eye masks when filtered					2
Receiver Section
Receiver Center Wavelength	λc	1260		1620	nm
Receiver Sensitivity in Average Power	Sen	-24		-7	dBm	4
Los Assert	LOSA	-30	–	–	dBm
Los Dessert	LOSD	–	–	-25	dBm
Los Hysteresis	LOSH	0.5	–	5	dB
Overload	Pin-max	–	–	-7	dBm	4
Receiver Reflectance		–	–	-12	dB
Receiver power (damage)		–	–	-6	dBm

Note:

1. The optical power is launched into 9/125µm SMF.
2. Measured with a PRBS 2³¹-1test pattern @10.3125Gbps.
3. Unfiltered, 20-80%. Measured with a PRBS 2³¹-1test pattern @10.3125Gbps.
4. Measured with a PRBS 2³¹-1test pattern @10.3125Gbps, ER=4dB, BER <10^-12.

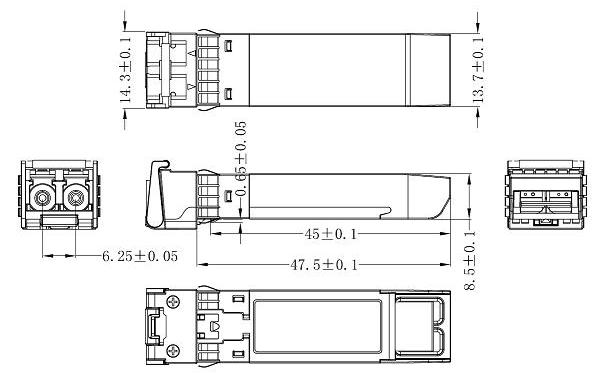

Mechanical Dimension

Order Information

Part Number	Product Description
SFP-10G-ZR100	1550nm, 10Gbps, 100km, Duplex LC SFP+ Transceiver, -5ºC ~ +70ºC, With DDM.
SFP-10G-ZR100E	1550nm, 10Gbps, 100km, Duplex LC SFP+ Transceiver, -20ºC ~ +80ºC, With DDM.
SFP-10G-ZR100T	1550nm, 10Gbps, 100km, Duplex LC SFP+ Transceiver, -40ºC ~ +85ºC, With DDM.
SFP-10G-ZR	1550nm, 10Gbps, 80km, Duplex LC SFP+ Transceiver, -5ºC ~ +70ºC, With DDM.
SFP-10G-ZRE	1550nm, 10Gbps, 80km, Duplex LC SFP+ Transceiver, -20ºC ~ +80ºC, With DDM.
SFP-10G-ZRT	1550nm, 10Gbps, 80km, Duplex LC SFP+ Transceiver, -40ºC ~ +85ºC, With DDM.
SFP-10G-ZR-60	1550nm, 10Gbps, 60km, Duplex LC SFP+ Transceiver, -5ºC ~ +70ºC, With DDM.
SFP-10G-ZR-60E	1550nm, 10Gbps, 60km, Duplex LC SFP+ Transceiver, -20ºC ~ +80ºC, With DDM.
SFP-10G-ZR-60T	1550nm, 10Gbps, 60km, Duplex LC SFP+ Transceiver, -40ºC ~ +85ºC, With DDM.
SFP-10G-ER	1550nm, 10Gbps, 40km, Duplex LC SFP+ Transceiver, -5ºC ~ +70ºC, With DDM.
SFP-10G-ERE	1550nm, 10Gbps, 40km, Duplex LC SFP+ Transceiver, -20ºC ~ +80ºC, With DDM.
SFP-10G-ERT	1550nm, 10Gbps, 40km, Duplex LC SFP+ Transceiver, -40ºC ~ +85ºC, With DDM.
SFP-10G-ER-31	1310nm, 10Gbps, 40km, Duplex LC SFP+ Transceiver, -5ºC ~ +70ºC, With DDM.
SFP-10G-ER-31E	1310nm, 10Gbps, 40km, Duplex LC SFP+ Transceiver, -20ºC ~ +80ºC, With DDM.
SFP-10G-ER-31T	1310nm, 10Gbps, 40km, Duplex LC SFP+ Transceiver, -40ºC ~ +85ºC, With DDM.
SFP-10G-LR-20	1310nm, 10Gbps, 20km, Duplex LC SFP+ Transceiver, -5ºC ~ +70ºC, With DDM.
SFP-10G-LR-20E	1310nm, 10Gbps, 20km, Duplex LC SFP+ Transceiver, -20ºC ~ +80ºC, With DDM.
SFP-10G-LR-20T	1310nm, 10Gbps, 20km, Duplex LC SFP+ Transceiver, -40ºC ~ +85ºC, With DDM.
SFP-10G-LR	1310nm, 10Gbps, 10km, Duplex LC SFP+ Transceiver, -5ºC ~ +70ºC, With DDM.
SFP-10G-LRE	1310nm, 10Gbps, 10km, Duplex LC SFP+ Transceiver, -20ºC ~ +80ºC, With DDM.
SFP-10G-LRT	1310nm, 10Gbps, 10km, Duplex LC SFP+ Transceiver, -40ºC ~ +85ºC, With DDM.
