Description

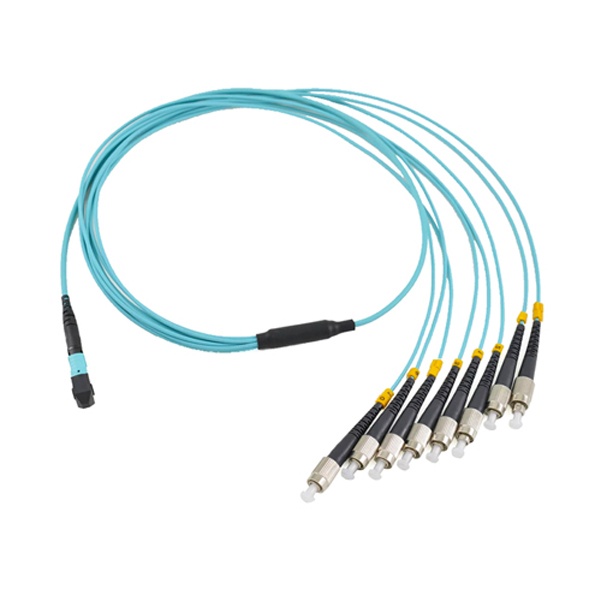

MTP 12 Breakout Cable Features
- 12 to 144 cores cables connection
- Adopts 4, 8, 12, 16, 24 cores MPO connectors, reduce fault failure rate and save space
- Smoothly upgrade 10G network to 40G, 100G, 400G, 800G network, support 400G 800G transmission latency requirement
- Optional MPO fiber multi-mode OM3, OM4, OM5, single mode G.652D, G.657A2 fiber requirement
- Adopts mini round micro cable, flat cable, small diameter, with smaller trunk cable and smaller bending radius, easy for storage and cable install
- Use dust-proof, compressive strength, tensile strength protective sleeve at both ends, can effectively protect cables and fiber optic connectors in the transportation and installation process from damage
MTP Patch Cord Optical Parameters
| Insertion loss(dB) | SM Standard | SM Elite | MM Standard | MM Elite | |
| ≤0.7 | ≤0.35 | ≤0.7 | ≤0.35 | ||
| Return loss(dB) | ≥60 | ≥20 | |||
| Durability (dB) | ≤0.2, 500 times mating | ||||
| Tensile strength(kgf) | 10 | ||||
| Working temperature(°C) | -20 ~+70 | ||||
| Measurement wavelength(nm) | 1310 | 850 | |||
| Standards | IEC61754-7, IEC61755, Telcordia GR-1435-CORE, JIS C5982, TIA-604-5(FOCIS5), structured cabling per TIA-568-C, 10G fiber channel, 40G and 100G IEEE 802.3, etc | ||||
| Housing color | Green connectors+black boot | Yellow connector+black boot | OM1&OM2: beige connector+black boot
OM3&OM4:aqua connector+black boot OM3&OM4: violet connector+black boot |
||
MTP Patch Cord Geometry parameters
| Item | X-axis | Y-axis | ||
| Min | Max | Min | Max | |
| Radius of curvature(mm) | 500 | – | 50 | – |
| Polishing angle | 0-0.2 | 0+0.2 | 8-0.2 | 8+0.2 |
| Item | Min | max | ||
| Fiber height (nm) | 1000 | 3000 | ||
| Max fiber height error (nm) | 600 | |||
| Adjacent fiber height error (nm) | -300 | +300 | ||
| Avg. fiber height error (nm) | -300 | +300 | ||
| Central concave (nm) | 300 | |||
LC/SC/FC Fiber Connectors
| Fiber mode | Single mode | Multi mode | ||
| Connector polishing | PC | APC | PC | |
| Insertion loss (dB) | ≤0.3 | |||
| Return loss (dB) | ≥50 | ≥60 | ≥35 | |
| Repeatability | ≤0.2 1000 times mating | |||
| Working temperature (°C) | -40 ~+85 | |||
| Measurement wavelength (nm) | 1310 | 850 | ||
