Description

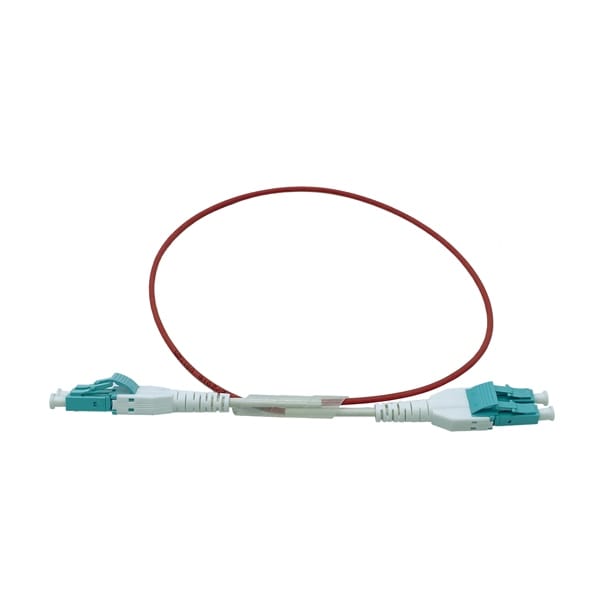

Features of Uniboot Patch Cord
- Low insertion loss
- High return loss
- Good exchange ability
- Good durability
- High temperature stability
- 100% interferometer measurement
- Telcordia GR-326-CORE
Specification
| Item | Parameter |
| Connector | SC LC FC ST E2000 DIN D4 SMA FDDI MTRJ MU MPO MTP LX.5 VF45, etc. |
| Operating wavelength | 1260-1650nm |
| Fiber type | G652D, G657A2, G657A1, G655, G657B3, OM1 OM2 OM3 OM4,OM5, etc. |
| Cable jacket | LSZH, PVC, PE, TPU, etc. |
| Cable type | Simplex, duplex (zip cord), ??3mm,??2.6mm, ??2.4mm, ??2mm,??1.6mm, ??0.9mm, etc. |
| Polish manner | UPC, APC??8?㣩, PC |
| Cable color | Yellow, white, blue, orange, gray, green, etc. |
| Fiber radius of curvature | ?? 40 mm (G.652D and G.655C); ?? 20 mm (only G.657A2) |
| Insertion Loss | ?? 0.1dB (Master)
?? 0.3dB (Standard) Tested by JDS RM 3750 |
| Return Loss | UPC ?? 55dB,APC ?? 60dB (typ.65dB)–Single mode
UPC?? 35dB (typ.38dB)-Multimode Tested by JDS RM3750 |
| Repeat?ability | ??0.1dB |
| Operating temperature | -40 ?? C to 85 ?? C |
| Geometry Requirement
(For Single mode) |
Ferrule End face Radius:
7mm ?? R ?? 12mm (APC) 10mm ?? R ?? 25mm (Standard) Apex Offset ?? 30 ??m (Master) Apex Offset ?? 50 ??m (Standard) Undercut -50nm ?? U ?? 50nm Tested by DORC ZX-1 |
