Description

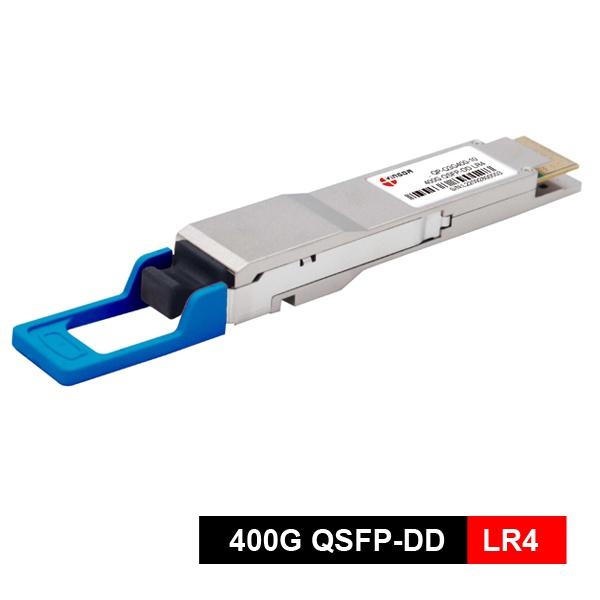

Features of qsfp dd-400g-lr4
- Supports 425Gb/s PAM4
- Digital Diagnostics Monitoring Interface
- Built-in 400G PAM4 DSP
- Maximum link length of 10kmover SMF with KP-FEC
- Hot-pluggable QSFP-DD form factor
- Cooled 4 channels CWDM EML TOSA
- 4 channels PIN ROSA
- Commercial operating case temperature range: 0~ 70ºC
- RoHS compliant
- Power dissipation< 12W
- TDECQ<9dB
- Duplex LC optical receptacle
Standard
- IEEE 802.3bs 400GBASE-LR4
- QSFP-DD MSA
- SFF-8636
Application
- Metropolitan core interconnection: 400G core switches that connect different data centers within the same city.
- Large-scale campus backbone: 400G backbone links for large campuses (such as university towns or science parks).
- DCI (Data Center Interconnection): Provides high-performance single-mode fiber direct connections within a 10km range.
Specification of qsfp dd-400g-lr4
| Absolute Maximum Ratings | ||||
| Parameter | Symbol | Min | Max | Unit |
| Storage Ambient Temperature | TSTG | -40 | 85 | ℃ |
| Operating Humidity | HO | 5 | 85 | % |
| Power Supply Voltage | Vcc | -0.3 | 3.6 | V |
| Signal Input Voltage | Vcc-0.3 | Vcc +0.3 | V | |
| Recommended Operating Conditions | |||||
| Parameter | Symbol | Min | Typical | Max | Unit |
| Operating Case Temperature | Tc | 0 | 70 | ℃ | |
| Power Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V |
| Data Rate, each Lane（PAM4） | 106.25 | Gbps | |||
| Fiber Length 09/125μm core SMF | – | – | 10 | km | |
| Optical transmitter Characteristics | ||||||
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
| Launched Power (avg.) Per Lane | Pavg | -2.8 | 4 | dBm | ||
| Wavelength Range | L1 | 1264.5 | 1271 | 1277.5 | nm | |
| Wavelength Range | L2 | 1284.5 | 1291 | 1397.5 | nm | |
| Wavelength Range | L3 | 1304.5 | 1311 | 1317.5 | nm | |
| Wavelength Range | L4 | 1324.5 | 1331 | 1337.5 | nm | |
| Spectral Width(-20dB) | ∆λ | 0.6 | nm | |||
| Extinction Ratio | ER | 3.5 | dB | |||
| Transmitter OFF Output Power | POff | -30 | dBm | |||
| Optical Modulation Amplitude(OMA outer) | OMA | -1.6 | 5 | dBm | ||
| Transmitter and dispersion eye closure(TDECQ) | TDECQ | 3.9 | dB | |||
| Optical receiver Characteristics | ||||||
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
| Receiver Wavelength Range | L1 | 1264.5 | 1271 | 1277.5 | nm | |
| Receiver Wavelength Range | L2 | 1284.5 | 1291 | 1397.5 | nm | |
| Receiver Wavelength Range | L3 | 1304.5 | 1311 | 1317.5 | nm | |
| Receiver Wavelength Range | L4 | 1324.5 | 1331 | 1337.5 | nm | |
| Average Receiver Power Per Lane | -9.1 | 4 | dBm | |||
| Receiver Sensitivity Per Lane | Sen | -8 | dBm | |||
| Optical Power Input Overload | Pin-max | 5.3 | dBm | |||
| Receiver Reflectance | Rr | -26 | dB | |||
Ordering Information
| Part. No | Specifications | ||||||||
| Pack | Rate (Gbps) | Tx (nm) | Po (dBm) | RX | Sen (dBm) | Temp (℃) | Reach (KM) | DDM | |
| QSFP DD-400G-LR4 | QSFP-DD | 400G | CWDM EML | -2.8~4 | PIN | <-8 | 0~70 | 10 | Y |
