Description

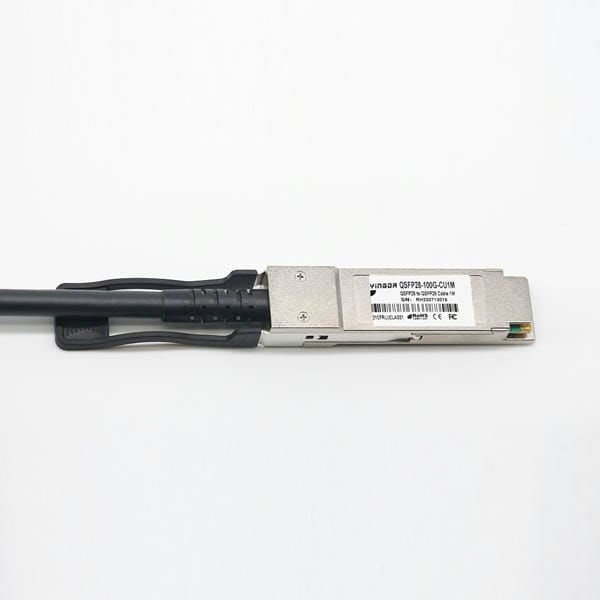

The 100G QSFP28 to QSFP28 DAC high-speed cable complies with the QSFP28 MSA and IEEE 802.3bj 100GBASE-CR4 standards. It is suitable for short-distance high-speed interconnection low-cost solutions, featuring low power consumption, low latency, and strong operability. Its transmission distance can reach up to 5 meters.
Features of 100G DAC
- Supports hot-swappable QSFP28 package
- Maximum rate up to 100Gb/s
- Complies with QSFP28 MSA and SFF-8636, SFF-8402 standards
- Complies with IEEE 802.3bj and Infiniband EDR specifications
- Through passive copper cable connection, the length can reach 5 meters
- Enhances EMI/EMC performance
- Provides cable sizes ranging from 30AWG to 24AWG
- Based on I2C, dual-wire serial interface with customizable EEPROM signature
- Operating temperature: 0~70ºC
- Complies with RoHS 6.0
Parameter
| Product model | QSFP28-100G-DAC |
| Brand | YINGDA |
| Transmission rate | 100G |
| Guarantee period | 3 years |
| Transmission distance | 1 – 5m |
| Cable material | PVC |
| Package form | QSFP28 to QSFP28 |
| Operating temperature | 0 – 70ºC |
| Cable type | 30AWG/24AWG |
| Power supply voltage | 3.3V |
