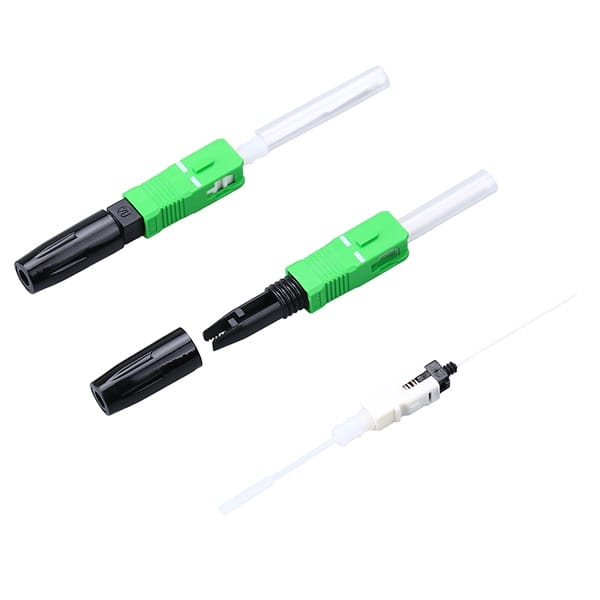

fibre optic mechanical splice SC APC green housing, individual pack 1pc/bag, high precise

SC fusion splice-on connector is optical fiber type fast connector, but its splicing point inside the connector end, equivalently eliminate the pigtails when splicing. The advantage is no need additional protection after splice, such as splice tray, splice closure, or distribution boxes.

In contract to the design of mechanical splicer, it save V-groove mechanical connector maintenance and operation cost and durable, which overturns the concept that high cost of splice machine and do not apply to FTTH construction.

Fusion Spliced | Telecom Grade | Zero Failure

Description

Splice Connector Features

  • Low operation cost, high efficiency
  • Quickly achieve the on-site termination connection
  • Pressure welding parts adopt new unique structure design, installation without glue injection, no grinding, no consumables
  • High installation quality, high success rate and installation fast, etc.
  • Accurate mechanical dimensions
  • All materials conforms to ROHS
  • Easy to carry
  • Easy to operate or use



Fusion Splice On Connector Specification

Model YDFOSC002
Connector type SC/APC
Cable?type 0.9mm, 2.0mm, 3.0mm, 3.1*2.0mm?drop?cable
Fiber?diameter 125um?(G657A2?bare?fiber)
Tight?buffer?diameter 250um
Fiber?type Single?mode?OS1?9/125um
Insertion?loss ??0.3dB
Return?loss ??-50dB
Bare?fiber?solid?tightness ??250g
Working?temperature -40??-+80??
Tension?strength 60N?(5kgs?for?2mins)
Drop?test 4 meters high cement floor direction at a time, in total 3times
