Description

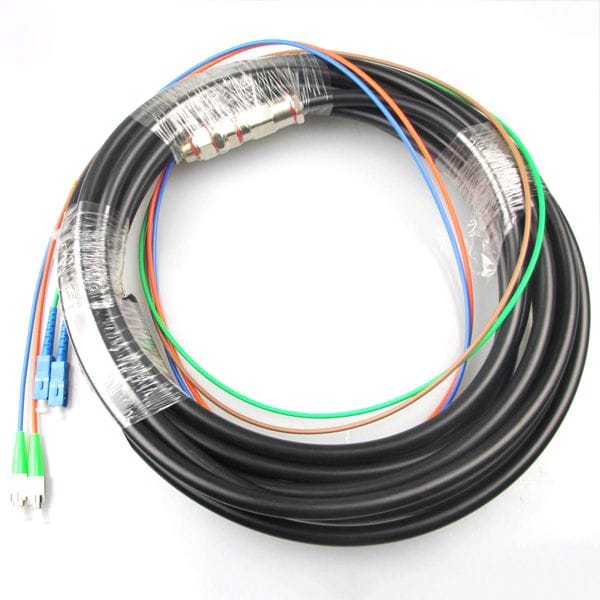

Waterproof drop?cord?are widely used in data transmission network, typical types are with 2 fiber cores, 4 fiber cores or 8, 12 fiber cores. By adopting the special structure cables and connectors, these fiber cable assemblies are widely used in CATV and other applications.
Features of Waterproof Drop Cord
- Fiber core: 2, 4, 6, 8,12 optional
- Waterproof features & reliable performance
- Pull & erosion resistance, good grounding
- Low insertion loss, high return loss, excellent exchange-ability, high stability
- The cable and pigtail is not moved when tighten the connection screw, which ensure the convenient construction.
- Various connectors can be use SC FC LC ST, etc.
Specification
| Parameter | Unit | Water-proof?fiber Patch cord | |||
| SM | MM | ||||
| PC | UPC | APC | PC | ||
| Insertion loss (typical) | dB | ??0.3 | ??0.2 | ??0.3 | ??0.2 |
| Return loss | dB | ??45 | ??50 | ??60 | ??35 |
| Operating wavelength | nm | 1310, 1550 | |||
| Exchangeability | dB | ??0.2 | |||
| Vibration | dB | ??0.2 | |||
| Operating temperature | ?? | -40~75 | |||
| Storage temperature | ?? | -45~85 | |||
| Inner Cord diameter | mm | ??3.0,??2.0,??0.9 | |||
| Fiber cores | Cores | 4, 6, 8, 12, 24, ?? fibers | |||
| Applicable connector | FC, SC, ST, MU, LC | ||||
| Waterproof connector material | Aluminum or copper optional. | ||||
