SC Single Mode Pigtail Features
- High repeatability and high return loss
- High stability and good interchangeability
- Low insertion loss and high reliability
- Three types of fiber end faces: PC, UPC, APC
- The entire series of optical fibers can be used: multi-mode (50/125, 62.5/125, OM3, OM4, OM5), single-mode (G.652, G.655, G.657, etc.)
SC Single Mode Pigtail Application
- Fiber Optic Telecommunications
- LAN (Local Area Network
- FTTH (Fiber To The Home)
- CATV&CCTV
- High speed transmission systems
- Fiber optic sense
Pigtail Specification
| Item | Value |
| Connector | SC LC FC ST E2000 DIN D4 SMA FDDI MTRJ MU MPO MTP LX.5 VF45, etc. |
| Operating wavelength | 1260-1650nm |
| Fiber type | G652D, G657A2, G657A1, G655, G657B3, OM1 OM2 OM3 OM4,OM5, etc. |
| Cable jacket | LSZH, PVC, PE, TPU, etc. |
| Cable type | Simplex, duplex (zip cord), ??3mm,??2.6mm, ??2.4mm, ??2mm,??1.6mm, ??0.9mm, etc. |
| Polish manner | UPC, APC??8?㣩, PC |
| Cable color | Blue, orange, green, brown, slate, white, red, black, yellow, violet, rose, and aqua |
| Fiber radius of curvature | ?? 40 mm (G.652D and G.655C); ?? 20 mm (only G.657A2) |
| Insertion Loss | ?? 0.1dB (Master) ?? 0.3dB (Standard) Tested by JDS RM 3750 |
| Return Loss | UPC ?? 55dB,APC ?? 60dB (typ.65dB)–Single mode UPC?? 35dB (typ.38dB)-Multi?mode Tested by JDS RM3750 |
| Repeat?ability | ??0.1dB |
| Operating temperature | -40 ?? C to 85 ?? C |
| Geometry Requirement (For Single mode) | Ferrule End face Radius: 7mm ?? R ?? 12mm (APC) 10mm ?? R ?? 25mm (Standard) Apex Offset ?? 30 ??m (Master) Apex Offset ?? 50 ??m (Standard) Undercut -50nm ?? U ?? 50nm Tested by DORC ZX-1 |
SC Pigtails Details

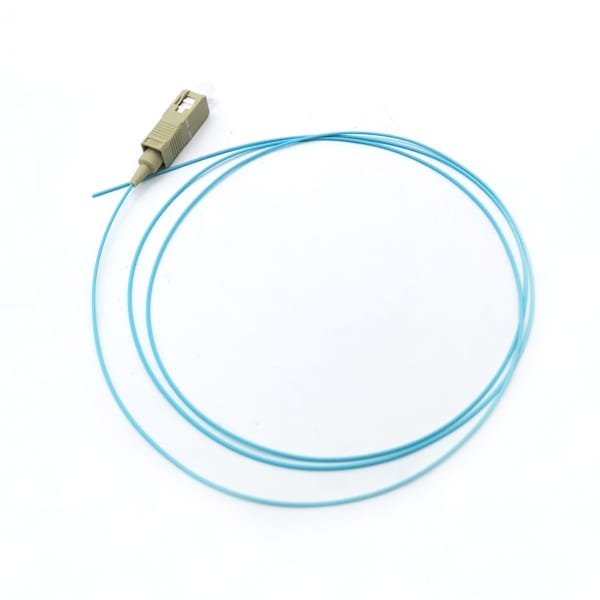

Yingda can provide single fibre pigtails or multi-fiber pigtails in single mode fiber or multimode fiber. Below is OM3 multimode fiber with aqua cable and beige color connectors. All fiber connectors SC adopt 2.5mm three-circle brand ceramic ferrule, A grade, insertion loss less than 0.3dB.
Yingda standard package for fibre optica pigtails are plastic bags, put on a test report data label on the bag, you can use your own brand or description here. It is good for retailer or distributors to resell.
