Description
Compliance
- ISO/IEC11801:2008
- ANSI/TIA/EIA 568-C.3

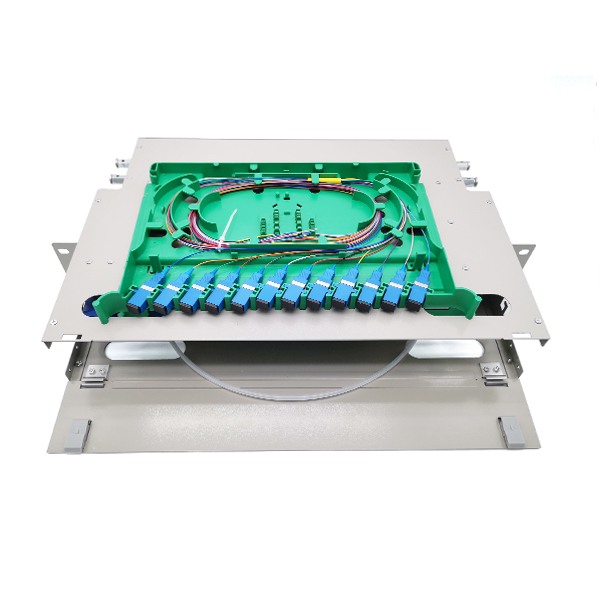

Features of ODF Panel
- 19 ??standard installation, suitable for a variety of rack, cabinet installation
- Pull-out design, set ?eld welding, welding wiring module integration
- Each tray can be tabbed to install 12/24pcs of FC, LC duplex, SC, and ST adapters
- Wide working space, Individual distribution panel for efficient work
- OEM, customer logo can be print or with stickers
- Fully load with adapter and pigtails is available at factory
Specification of ODF Panel
| Box Material | Cold rolled steel with electrostatic spraying | |
| Distribution Board Material | ABS | |
| Item Dimension (mm)
(length*width*height) |
32C | 430*210*3U |
| 64C | 430*210*4U | |
| 128C | 430*210*8U | |
| 256C | 430*210*14U | |
| 512C | 430*210*16U | |
| Maximum bending space (mm) | ??30 | |
| Max Fibre Count | 576 | |
| Adapter | SC | |
| Insertion loss | <0.3dB | |
| Return loss | ??35dB(PC); ??50dB(UPC); ??65dB(APC); | |
