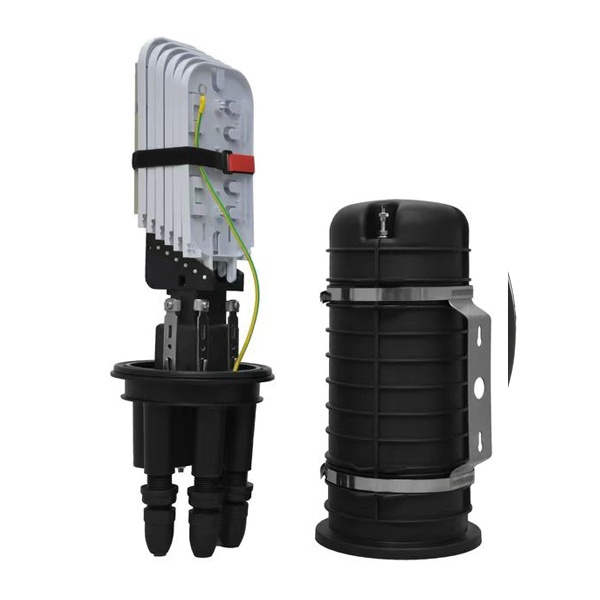

GJS-03S 1+4 ports Mechanical Sealing Joint Closure IP68 Waterproof Outdoor use

Description

Features

• Excessive fibers can be stored in storage??Easy in fiber management.
• Fully mechanical sealing. Easy installation and??No other sealing adhesive tape is needed.
• Base and dome sealed with clamp and O-ring??Cable entry ports sealed with rubber.
• The splice trays are hinged for access to any splice tray, without disturbing other
• The inner parts and fixing parts are made of stainless steel.
• With a earthing device protect it from damage by lightning.
• Compatible with most cable types(single fiber or ribbon), and cable constructions(loose tube, central core, slotted core, modular). And the product can be used in any environment (aerial, buried, hand hole, manhole)and in many applications (tap-off, expressed, branch, and repair).

Technical?Parameter

• Working Temperature: -40 degrees centigrade~+70 degrees centigrade.
• Atmospheric Pressure: 70~150Kpa.
• Axial Tension: >2000N/1min.
• Stretching Resistance: 2500N/10 square centimeter (1min).
• Insulation resistance: >2*104M??.
• Voltage Strength: 15KV/1min, no arcover or breakdown.
• Pressure in the water: 50m/72hours.
• Splice tray with optical taking-in radius: 30mm. Low optical loss.

Application

It can be installed in aerial locations, duct applications, direct buried, manholes. Small volume but large capacity.

Specification
