Description

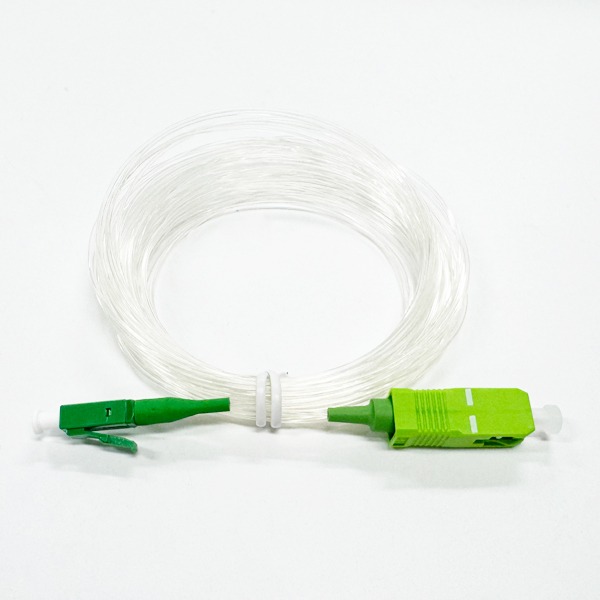

Invisible Patch Cord Features
- Invisible fiber optic cable, more aesthetically pleasing than regular fiber patch cords.
- Fiber patch cable length and optical connectors can be customized.
- Utilizes bend-insensitive G.657B3 fiber, more suitable for indoor multi-angle installations.
- Small size, lightweight, resistant to electromagnetic interference, and excellent signal stability.
- Low loss, high callback loss, and 100% tested and qualified before shipment.
- Sample and small batch orders accepted.
Standards
- Conforms to GR 326, IEC61300-2, ROHS, IEC61753-1, IEC61754
Invisible Fiber Patch Cord Application
- FTTR indoor fiber optic cabling
Fiber Patch Cord Specification
| Part no. | YDPC-LASA-SSX-0903 |
| Connector type | LC to SC |
| Fiber type | G.657B3 |
| Polish mode | APC |
| Insertion loss | ≤0.23dB |
| Return loss | ≥60dB |
| Repeatability | ≤0.2dB |
| Interchangeability | ≤0.2dB |
| Operating temperature | -40ºC~85 ºC |
| Storage temperature | -40ºC~85 ºC |
Transparenet Optical Cable Specification
| Fiber count | Structure | Outer Diameter (mm) | Weight (kg/km) | Tensile Force (N) | Flattening Force (N) | Bending Radius (N) | |||
| Long term | Short term | Long term | Short term | Static | Dynamic | ||||
| 1 | Tight buffer | 0.6 | 0.40 | 5 | 20 | 200 | 500 | 5D | 20D |
| 1 | Tight buffer | 0.9 | 0.76 | 5 | 20 | 200 | 500 | 5D | 20D |
Yingda OEM & ODM fiber optic patch cord lc to sc with different lengths, different connectors SC LC FC SC MPO MTRJ MU E2000, etc. However, due to the invisible fiber is often used in fiber to the room cabling, so it is mostly use with SC or LC connectors, which will insert into the router, wall outlet, media converter, sfp transceivers or switches.
Each one piece of patch cord SC/APC LC/APC will be packed in one plastic bag, better protection than 10pcs or 100pcs/bag, and it is best for on-site construction workers. We will paste test data on the pack itself for your reference. Yingda support to print your logo or company information on the bag.
Contact us if you need any customize.
