Description

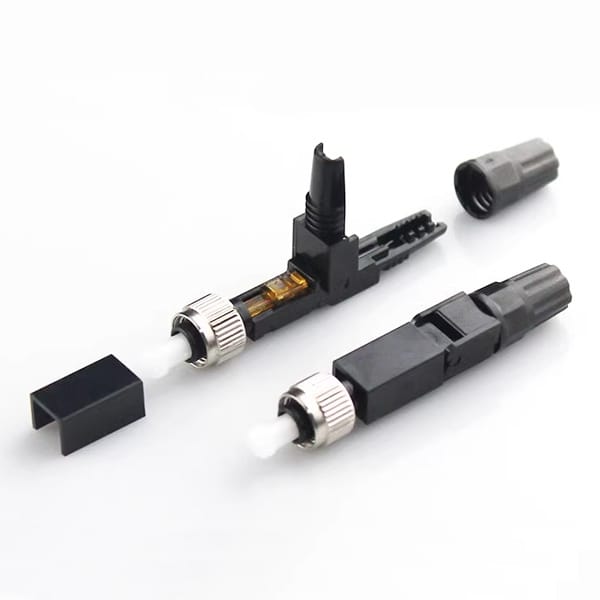

The?FAST Connector?is a pre-polished?connector?which uses mechanical clamping and aligning of a cleaved fibre end which is inserted into the?connector?body. The?FC?FAST Connector?now mostly is single?mode type fiber, multi-mode?can do ,but not use much.
Features:
- Field installable, cost effective, user friendly;
- PC, APC polishing optional;
- No electricity required;
- FTTH cable, fiber optic cable optional;
- Reliable durable and superior optical performance
- Adopt Three Circle A-class ceramic ferrule, improves product stability, low loss and small change;
- Large scale production, mature technology, exquisite, which ensure the quality of connectors;
- Strong practicability and can be reused for more than 5 times;
- Stable operation performance, low insertion loss, low maintenance rate and fast installation speed;
- Each 100pcs will equip with 1pc length fixing device;
Field Installable Fiber Optic Connector FC Technical parameter:
| Model | YDFAC011-FC/APC | YDFAC011-FC/UPC |
| Connector type | FC APC | FC UPC |
| Insertion loss | Average??0.3dB, max.??0.5dB | |
| Return loss | ??50dB | |
| Fiber type | Single mode, multi-mode | |
| Fiber diameter | 0.9mm, 2.0mm, 3.0mm, 2.0*3.0mm | |
| Working temperature | -40 ~+850C | |
| Application | Fiber to the home | |
