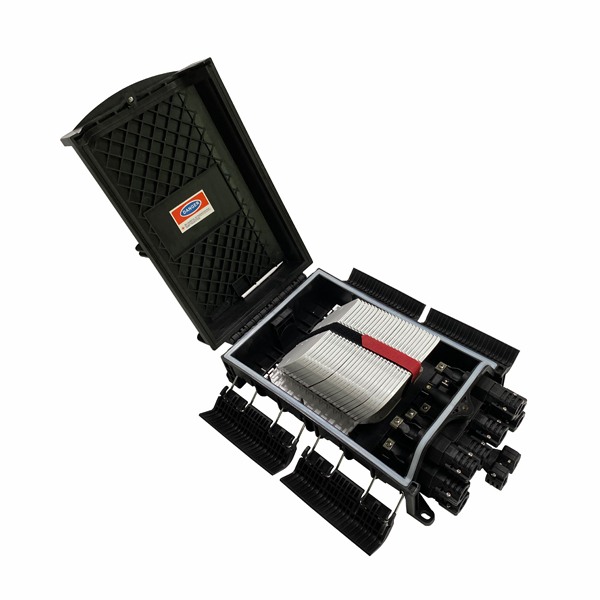

Description
Product Features
- The output end adopts a pre-connected design,?which is plug and play and does not require fusion?connection
- Quick insertion enables the fixation and sealing of?optical cables outside the?joint box, enabling quick installation
- Support the allocation of?optical fibers?within the same loose tube to different fusion discs
- Support ground and underground installations
- Small size and beautiful appearance
- Meet the explosion-proof requirements of mines
- Protection?level ?IP68
- Digital?management:?Support?AI?image?recognition?and?accurately?manage?ORP?resources
specifications
| Wiring capacity (in cores) | 16 |
| Fusion capacity (in?cores) | 96 |
| Type?of?fusion disc | RJP-12-1 |
| Maximum number of fusion discs | 8 |
| Single disc?fusion capacity?(unit:?core) | 12 |
| Tail?fiber?type | 16SC/APC tail fibers, length?1m, sheath made of
LSZHmaterial, and optical fiber made of G.657A1 fiber |
| model | M?-16 |
| Fiber?optic cable inlet and?outlet holes | 1?TJ-T01?adapter????6-18 mm?straight through?optical?cable |
| 2?TJ-F01?adaptations??? 5-12mm?branching optical cable | |
| 16?SC/APC outdoor?adapters | |
| Installation method | Wall hanging |
| Application?Scenario | mine |
| Dimensions (height x width x depth, in millimeters) | 405*210*150 |
| Packaging?size (height x width x depth, unit: mm) | / |
| Net weight in kg | / |
| Gross weight?in kg | / |
| Shell material | PP+GF |
| color | black |
| Protection?level | IP68 |
| Impact resistance level | IK09 |
| Flame retardant grade | FV2 |
| Antistatic | Meet?GB3836.1 |
| RoHS | satisfy |
| Sealing?method | mechanical |
| adapter?type | SC/APC?outdoor adapter |
Environmental parameters
| working?temperature | -40 ~+65 |
| Storage?temperature | -40 ~+70 |
| Working humidity | 0%~93%?(+40 ) |
| pressure | 70 kPa?to?106?kPa |
