Polarity Type A 2x 12 Cores MTP Fiber Cassette , LC Duplex Port, MTP Male Connectors, 10G OM3 Aqua Breakout Cable, Plastic Housing, Oblique Shape, Light Weight

Description

MTP Fiber Cassette Features

• Made of high quality plastic engineering plastic material, black color;
• Special irregular shape design,easy to plug in and out the adapter;
• Max capacity can be 12 cores or 24 cores;
• Hold 2 pcs MPO adapter at back;
• Single mode or multi-mode both can be ok;
• Press down the both sides clamps to take out the mtp cassette, fast and convenient to use.

MTP MPO Cassette Specification

MTP Fiber Cassette Details

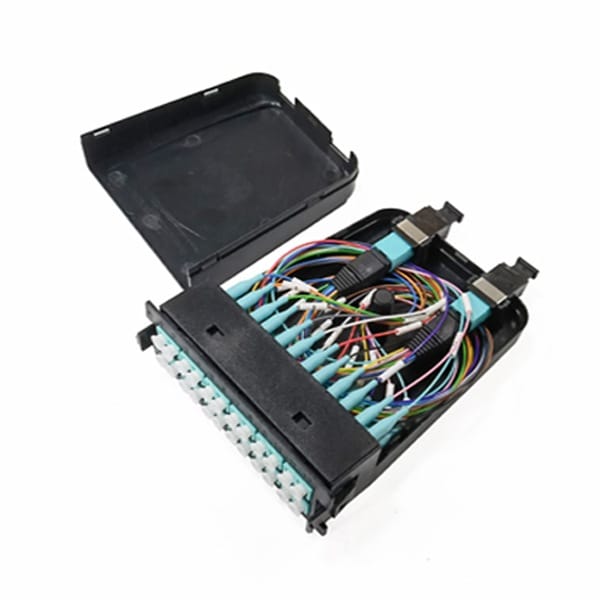

This MPO Fiber cassette module is widely used in high density high bandwidth data center cabling, in front with LC duplex adatpers, and rear 1 or 2 pcs MPO adapters, internal configure with MPO LC breakout cable assemblies in 0.35 meter long, 0.9mm fanout pigtails.

This modular cassette is not used seperatly, most of the time installed in a 19in rack mounted patch panels like  below, it can be used for several types of racks, fixed patch panel, sliding patch panel or only rack frames. It can be stacked up to a height of 2U, 3U, or 4U. If necessary, custom configurations are now available from Yingda

All MPO/MTP fiber casssettes made by Yingda is ROHS compliant plastic materials, with slef locking adapter panels, no need to use screws or spanner, toolless installation, plug and play, fast and convenient to use.

The front is standard LC duplex adapter without flange design, which meet the requirements of high density cabling, you can only use 4 port or 6 ports for BASE-8 cabling or BASE-12 cabling as well. And the fiber type can be single mode OS2 or multimode OM3/OM4/OM5 fibers, and bend insensitive fiber like G.657A2, G.657b3 or BIMMF fibers can be used if you need.
