Description

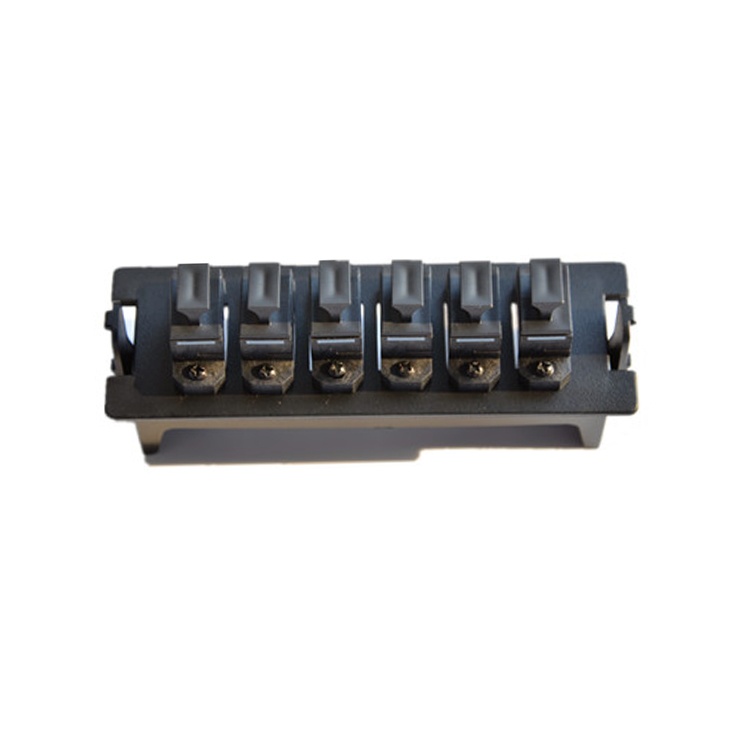

Holding up to 6 MPO/MTP couplers, this panel ensures rigid and precise fiber-to-fiber mating, keeping insertion loss to a minimum across demanding parallel optics links. Its sleek, slide-in rail compatibility and advanced snap-lock mechanism allow engineers to build a highly scalable, future-proof 40G, 100G, or 400G backbone cabling network with effortless modular flexibility.
Compact MPO Adapter Plate Features
- Ultra-compact space saving: Features a specialized, low-profile custom dimension tailored for ultra-high-density (UHD) chassis where standard LGX plates cannot fit.
- Proprietary chassis matching: Designed for seamless slide-in rail systems or specific snap-lock mechanisms of leading-edge customized patch panels.
- 6-way streamlined alignment: Holds 6 MPO couplers securely to maintain precise fiber-to-fiber mating, minimizing insertion loss across dense parallel optics links.
- Durable industrial polymer: Constructed with rugged, impact-resistant synthetic material that resists warp and heat, ensuring stable performance in 24/7 data center environments.
- MPO/MTP Backbone ready: Optimized for clean routing of 40G/100G/400G backbone networks, simplifying polarity management and future-proof speed migrations.
MPO Adapter Plater Size
Key Specifications of Proprietary MPO Chassis Panel
| Product Type | 6-Port Ultra-High-Density Compact MPO Plate | XXX= adapter type MPS=MPO/MTP OS2 MP3=MPO/MTP OM3 MP4=MPO/MTP OM4 MP5=MPO/MTP OM5 SA1=SC/APC simplex SA2=SC/APC duplex SU1=SC/UPC simplex SU2=SC/UPC duplex LA1=LC/APC simplex La2=LC/APC duplex … |
| Part no. | YDADP-0603P-XXX | |
| Material | Heavy-Duty Impact-Resistant Synthetic Polymer | |
| Thermal Stability | Engineered for 24/7 continuous high-heat data center environments | |
| Dimension (Length*Width) | 102*34mm, Ultra-Compact Custom Profile (For UHD customized slide-in chassis) | |
| Capacity | 6 Slots for MPO/MTP Couplers | |
| Locking Mechanism | Advanced Secure Snap-Lock / Slide-In Rail System |
⚠️ Note:
- 6 port, 12 port can be avaible for SC LC FC ST connectors.
- If use MPO/MTP adapters, please pay attention to Polarity Type A or Type B, and female and male connectors.
Applications of HD Plastic Fiber Panel
- Ultra-High-Density (UHD) Data Center Fiber Patching
- Cloud Computing & Edge Data Center Environments
- High-Speed Parallel Optics Link Migrations (100G to 400G)
- Modular Scalable Fiber Distribution Networks
Modular MPO Plate Details
All high density modular mpo adapter plate is is made of high strength engineering plastic, flame retardant material. It is the same size as the MTP breakout cassette which will be used for high density patch panels. It is compatible with each other. And we can prepare blank blocking for you to prevent dust entering if not used port at present.
4 pieces of such compact MPO adapter plates can be snap-into the 1U 576 Cores FHD fiber patch panel for high density cabling in data center, no need screws or rivets to fix it on the patch panels. Yingda can help pre-connectorized MPO/MTP fiber trunk cables, MPO/MTP fiber adapters on the plate in factory. This 1U UHD patch panel is with 2 top covers, one is for adapter distribution in front, one is for trunk cable distribution at back.
