Description

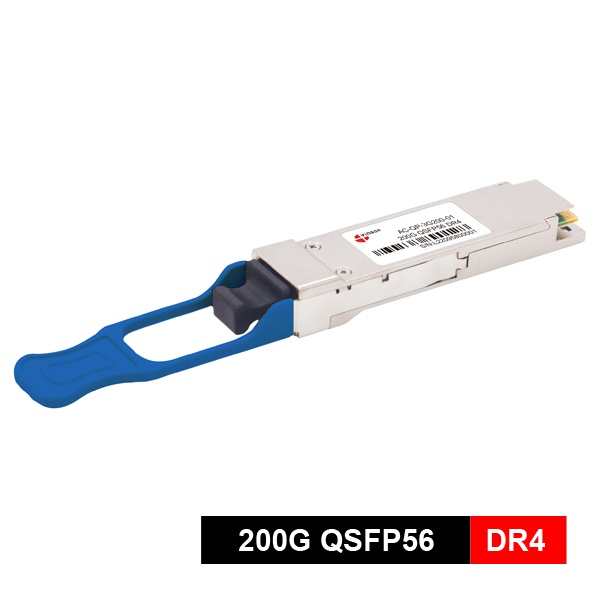

Features of 200g qsfp56 dr4
- Supports 212.5Gb/s PAM4.
- Digital Diagnostics Monitoring Interface
- Built-in 200G PAM4 DSP
- Maximum link length of 500mover SMF
- Hot PluggableQSFP56 form factor
- Uncooled 4 channels 1310nm EML
- 4 channels PIN photo detector array
- Commercial operating case temperature range: 0~ 70ºC
- RoHS compliant
- Power dissipation < 5.5 W
- TDECQ<4dB
- Single MPO12 receptacle
- 200GAUI-4 electrical interface
Standard
- IEEE 802.3bs 200GE DR4
- QSFP56 MSA compliant
- Compliant to SFF-8636
Application
- Cabinet-to-cabinet direct connection (Leaf-Spine): In large data centers, when two switches are within 500 meters apart, DR4 offers a more stable single-mode transmission solution compared to multimode SR4;
- Breakout (Branch Conversion): This is the core value of DR4. It supports 1:4 mode and connects a 200G port to 4 50G single-channel optical modules through one MPO-to-4-LC branch optical cable;
- Transition to 400G: In some architectures, 400G DR4 ports can be interconnected with 200G DR4 modules through branch cables.
Specification of 200g qsfp56 dr4
| Absolute Maximum Ratings | ||||
| Parameter | Symbol | Min | Max | Unit |
| Storage Ambient Temperature | TSTG | -20 | 85 | ℃ |
| Operating Humidity | HO | 5 | 85 | % |
| Power Supply Voltage | Vcc | -0.3 | 3.6 | V |
| Signal Input Voltage | Vcc-0.3 | Vcc +0.3 | V | |
| Recommended Operating Conditions | |||||
| Parameter | Symbol | Min | Typical | Max | Unit |
| Operating Case Temperature | Tc | 0 | 70 | ℃ | |
| Power Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V |
| Data Rate,each Lane（PAM4） | 53.125 | Gbps | |||
| Fiber Length 09/125μm core SMF | – | – | 500 | m | |
| Optical transmitter Characteristics | ||||||
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
| Launched Power (avg.) Per Lane | Pavg | -5.1 | 4 | dBm | ||
| Wavelength Range | λ0 | 1304.5 | 1317.5 | nm | ||
| Spectral Width(-20dB) | ∆λ | 0.6 | nm | |||
| Extinction Ratio | ER | 3.5 | dB | |||
| Transmitter OFF Output Power | POff | -30 | dBm | |||
| Optical Modulation Amplitude(OMA outer) | OMA | -4.4 | 4 | dBm | ||
| Transmitter and dispersion eye closure(TDECQ) | TDECQ | 3.4 | dB | |||
| Optical receiver Characteristics | ||||||
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
| Receiver Wavelength Range | 1304.5 | 1317.5 | nm | |||
| Average Receiver Power Per Lane | -8.4 | 3 | dBm | |||
| Stressed Receiver Sensitivity (OMAouter) (each lane) | Sens | -4.1 | ||||
| Receiver Sensitivity Per Lane | Sen | -6.6 | dBm | |||
| Optical Power Input Overload | Pin-max | 4 | dBm | |||
Ordering information
| Part. No | Specifications | ||||||||
| Pack | Rate (Gbps) | Tx (nm) | Po (dBm) | RX | Sen (dBm) | Temp (℃) | Reach (M) | DDM | |
| QSFP56-200G-DR4 | QSFP56 | 200G | EML 1310 | -5.1~4 | PIN | ＜-6.6 | 0~70 | 500 | Y |
