Description

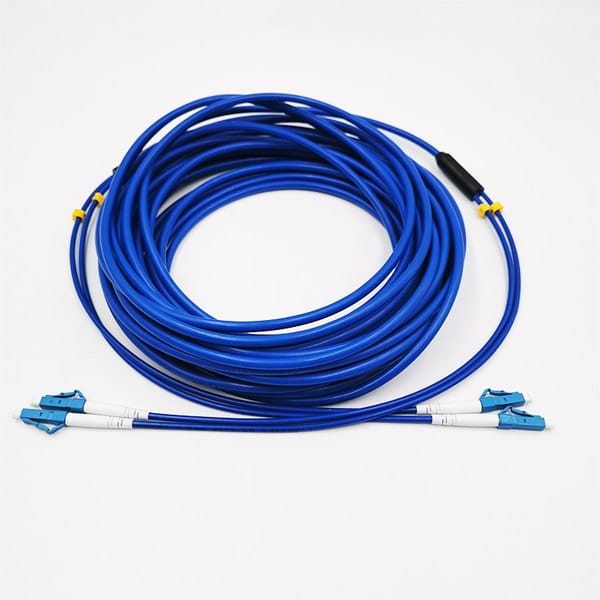

Features of Armored Fiber Patch Cable
- Good mechanical and environmental characteristics;
- Soft, flexible, solid, easy to splice, especially applied to optical long-distance, field, building wiring, trunking connectors;
- Flame retardant characteristics and the meet the requirements of relevant standards;
- Can be use for all kinds of optical connectors SC LC ST FC etc. ;
- Single mode fiber, multimode fiber both ok;
- Widely used in optical communication equipment rooms and optical distribution frames;
- 6mm tight buffer, with high strength kevlar yarn members;
- Steel armored flexible tube incear the cable twist resistance.
Connector Specification
| Connector | LC/UPC-LC/UPC |
| Operating wavelength | 1260-1650nm |
| Fiber type | G652D, G657A1 |
| Cable jacket | LSZH, PVC |
| Cable type | Duplex???3mm |
| Polish manner | UPC |
| Cable color | Yellow, white, blue |
| Fiber radius of curvature | ?? 30 mm (G.652D); ?? 15 mm (G.657A1) |
| Insertion Loss | ?? 0.3dB (Standard) |
| Return Loss | APC ?? 60dB (typ.65dB)–Single mode |
| Repeat?ability | ??0.1dB |
| Operating temperature | -40 ?? C to 85 ?? C |
