Description

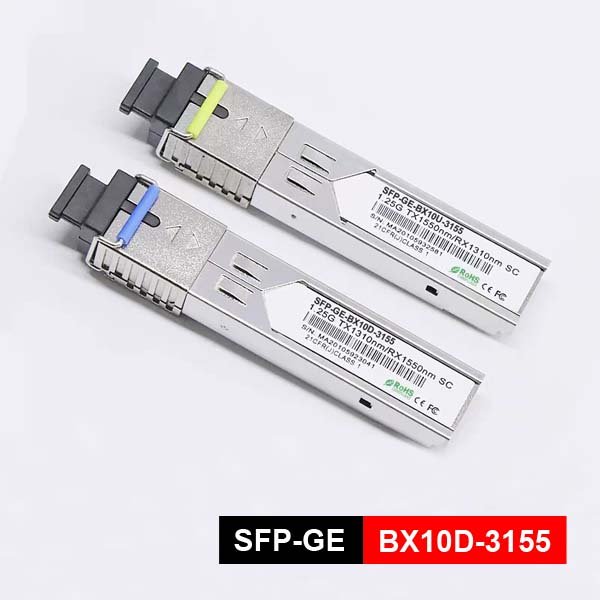

1 Gig SFP Module Features
- Up to 25Gbps data links
- 1310nm FP Laser and PIN photo-detectorfor SFP-GE-BX10D-3155
- 1550nm DFB Laser and PIN photo-detector for SFP-GE-BX10U-3155
- Up to 10kmon 9/125µm SMF
- Simplex SC receptacle optical interface compliant
- Hot pluggable
- All-metal housing for superior EMI performance
- RoHS6 compliant (lead free)
- Operating case temperature:Commercial: -5°C to +70°C;Extended: -20°C to +80°C;Industrial: -40°C to +85°C
Applications of SFP Module SC connector
- Gigabit Ethernet
- Fiber Channel
- Switch to Switch interface
- Switched backplane applications
- Router/Server interface
- Other optical transmission systems
Standards
- Compliant with SFP MSA
- Compliant with SFF-8472
- Compatible with IEEE802.3ah 2004
Optical Parameters
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
| Transmitter Section | ||||||
| Centre Wavelength | λc | 1260 | 1310 | 1360 | nm | SFP-GE-BX10D-3155 |
| 1480 | 1550 | 1580 | nm | SFP-GE-BX10U-3155 | ||
| Spectral Width (RMS) | σ | 3 | nm | FP | ||
| Spectral Width (-20dB) | ∆λ | 1 | nm | DFB | ||
| Side Mode Suppression Ratio | SMSR | 30 | – | – | dB | DFB |
| Average Optical Power (avg.) | Pout | -9 | -3 | dBm | 1 | |
| Laser Off Power | Poff | – | – | -45 | dBm | |
| Extinction Ratio | ER | 9 | – | – | dB | 2 |
| Relative Intensity Noise | RIN | – | – | -128 | dB/Hz | |
| Optical Rise/Fall Time | tr / tf | – | 260 | ps | 3 | |
| Optical Return Loss Tolerance | – | – | 12 | dB | ||
| Output Optical Eye | Compliant with IEEE802.3z eye masks when filtered | 2 | ||||
| Receiver Section | ||||||
| Receiver Center Wavelength | λc | 1480 | 1550 | 1580 | nm | SFP-GE-BX10D-3155 |
| 1260 | 1310 | 1360 | nm | SFP-GE-BX10U-3155 | ||
| Receiver Sensitivity in Average Power | Sen | -23 | -3 | dBm | 4 | |
| Los Assert | LOSA | -35 | – | – | dBm | |
| Los Dessert | LOSD | – | – | -24 | dBm | |
| Los Hysteresis | LOSH | 0.5 | – | 5 | dB | |
| Overload | Pin-max | – | – | -3 | dBm | 4 |
| Receiver Reflectance | – | – | -12 | dB | ||
| Receiver Power (damage) | – | – | 0 | dBm | ||
Ordering Information
| Part Number | Product Description |
| SFP-GE-BX10D-3155 | Tx1310nm, Rx1550nm, 1.25Gbps, 10km, Bi-Directional SFP Transceiver with Single SC Receptacle, -5ºC ~ +70ºC, With DDM. |
| SFP-GE-BX10D-3155E | Tx1310nm, Rx1550nm, 1.25Gbps, 10km, Bi-Directional SFP Transceiver with Single SC Receptacle, -20ºC ~ +80ºC, With DDM. |
| SFP-GE-BX10D-3155T | Tx1310nm, Rx1550nm, 1.25Gbps, 10km, Bi-Directional SFP Transceiver with Single SC Receptacle, -40ºC ~ +85ºC, With DDM. |
| SFP-GE-BX10U-3155 | Tx1550nm, Rx1310nm, 1.25Gbps, 10km, Bi-Directional SFP Transceiver with Single SC Receptacle, -5ºC ~ +70ºC, With DDM. |
| SFP-GE-BX10U-3155E | Tx1550nm, Rx1310nm, 1.25Gbps, 10km, Bi-Directional SFP Transceiver with Single SC Receptacle, -20ºC ~ +80ºC, With DDM. |
| SFP-GE-BX10U-3155T | Tx1550nm, Rx1310nm, 1.25Gbps, 10km, Bi-Directional SFP Transceiver with Single SC Receptacle, -40ºC ~ +85ºC, With DDM. |
