Description
Features
- Up to 1.25Gbps data links
- CWDMDFB Laser and PIN photo-detector
- Up to 10kmon 9/125µm SMF
- Duplex LC receptacle optical interface compliant
- Hot pluggable
- All-metal housing for superior EMI performance
- RoHS6 compliant (lead free)
- Operating case temperature:Commercial: -5°C to +70°C;Extended: -20°C to +80°C
Applications
- Short distance connections between different computer rooms within the same park
- Gigabit backbone links between different buildings within the same park
- Link from aggregation switch to access switch
- Short distance convergence from monitoring points to the central computer room
- Fiber to the home/building and other access scenarios
Standards
- Compliant with SFP MSA
- Compliant with SFF-8472
- Compatible with IEEE802.3ah 2004
Optical Parameters
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
| Transmitter Section | ||||||
| Centre Wavelength | λc | λc -6.5 | λc | λc +6.5 | nm | |
| Spectral Width (-20dB) | ∆λ | 1 | nm | |||
| Side Mode Suppression Ratio | SMSR | 30 | – | – | dB | |
| Average Optical Power (avg.) | Pout | -5 | 0 | dBm | 1 | |
| Laser Off Power | Poff | – | – | -30 | dBm | |
| Extinction Ratio | ER | 9 | – | – | dB | 2 |
| Relative Intensity Noise | RIN | – | – | -128 | dB/Hz | |
| Optical Rise/Fall Time | tr / tf | – | 260 | ps | 3 | |
| Optical Return Loss Tolerance | – | – | 12 | dB | ||
| Output Optical Eye | Compliant with IEEE802.3z eye masks when filtered | 2 | ||||
| Receiver Section | ||||||
| Receiver Center Wavelength | λc | 1260 | λc | 1620 | nm | |
| Receiver Sensitivity in Average Power | Sen | -24 | -3 | dBm | 4 | |
| Los Assert | LOSA | -35 | – | – | dBm | |
| Los Dessert | LOSD | – | – | -25 | dBm | |
| Los Hysteresis | LOSH | 0.5 | – | 5 | dB | |
| Overload | Pin-max | – | – | -3 | dBm | 4 |
| Receiver Reflectance | – | – | -12 | dB | ||
| Receiver Power (damage) | – | – | 0 | dBm | ||
Ordering Information
| Part Number | Product Description |

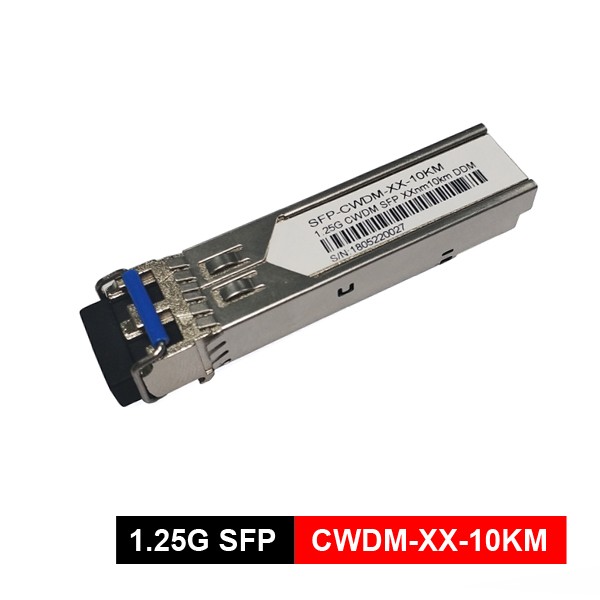

| SFP-1.25G-CWDM-xx-10KM | CWDM-XX, 1.25Gbps, 10km, Duplex LC CWDM SFP Transceiver, -5ºC ~ +70ºC, With DDM. |
| SFP-1.25G-CWDM-xx-10KME | CWDM-XX, 1.25Gbps, 10km, Duplex LC CWDM SFP Transceiver, -20ºC ~ +80ºC, With DDM. |
CWDM Wavelength Series
| Wavelength | xx | Clasp Color Code | Wavelength | xx | Clasp Color Code |
| 1471nm | 47 | Gray | 1551nm | 55 | Yellow |
| 1491nm | 49 | Violet | 1571nm | 57 | Orange |
| 1511nm | 51 | Blue | 1591nm | 59 | Red |
| 1531nm | 53 | Green | 1611nm | 61 | Brown |
