Description

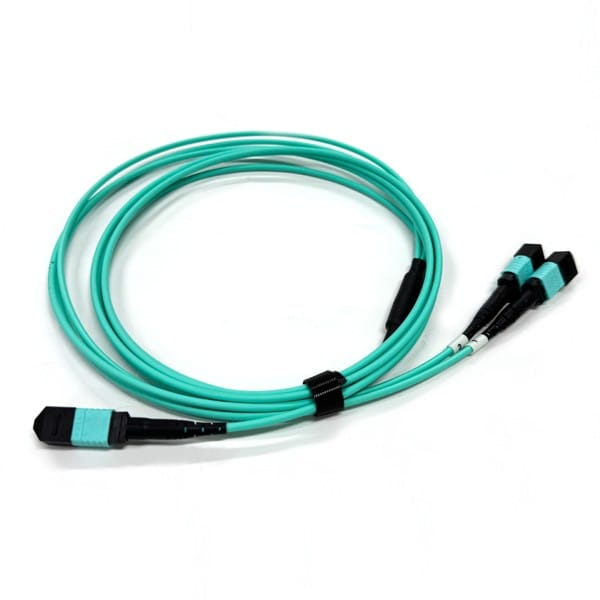

1×2 MTP Fiber Trunk Cable Standards
- Meets IEC Standard 61754-7& JIS C5982
- Structured cabling per TIA-568-C
16 MTP Fiber Trunk Cable Features
- Backbone installation
- Choice of either both ends with pins (Male type) or both ends without pins (female type)
- Fiber counts available in 12/24/36/48/72/96/144 fibers
- Round & mini-core cable structure to eliminate bend sensitivity and save space
- Available in single mode G 652 D and G 657, multimode OM2, OM3, OM4 fiber
- Optional pulling eye design to fit for different installation environment
Parallel Optics
- Optical Internetworking Forum (OIF) Compliant
- Infiniband Compliant
MTP Fiber Trunk Cable Infiniband
- 10G Fiber Channel Compliant
- 40G,100G, 400G, 800G
- QSFP, QSFP-DD, OSFP
16F MTP Fiber Trunk Cable Application
- Optical switching inter-frame connections
- High fiber density card edge access
- Array trunk cables
- Data center cabling
16 Fiber Truck Cable Structure
MTP Fiber Trunk Optical Connector Specification
| Optical Parameters | ||||
| Insertion loss (dB) | SM standard | SM Elite | MM standard | MM Elite |
| ≤0.7 | ≤0.35 | ≤0.7 | ≤0.35 | |
| Return loss (dB) | ≥60 | ≥6020 | ||
| Durability (dB) | ≤0.2 500times mating | |||
| Tensile strength (kgf) | 10 | |||
| Working temperature (℃) | -20 ~+70 | |||
| Measurement wavelength (nm) | 1310 | 850 | ||
| Geometry parameters | ||||
| Item | X-axis | Y-axis | ||
| Min | Max | Min | Max | |
| Radius of cruvature (mm) | 500 | – | 50 | – |
| Polishing angle | 0-0.2 | 0+0.2 | 8-0.2 | 8+0.2 |
| Item | Min | Max | ||
| Fiber height (nm) | 1000 | 3000 | ||
| Max fiber height error (nm) | 600 | |||
| Adjacent fiber height error (nm) | -300 | +300 | ||
| Avg. Fiber height error (nm) | -300 | +300 | ||
| Central concave (nm) | 300 | |||
