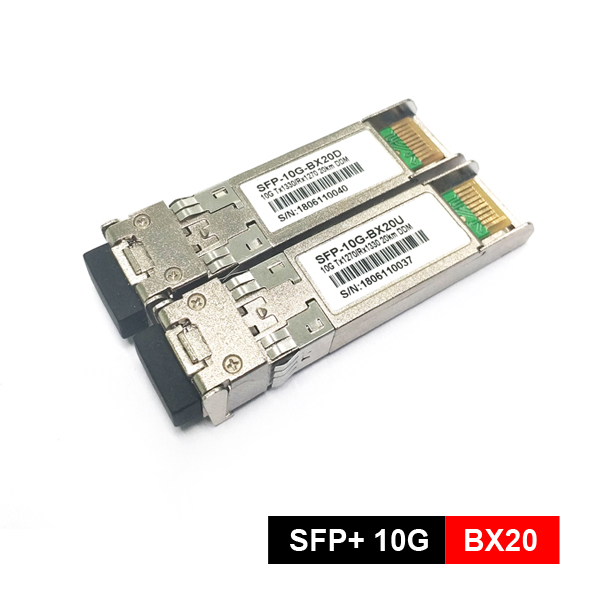

10G BIDI SFP+ Single Fiber Transceiver 1270/1330nm 20km, DDM, DFB Laser, PIN Photo-detector, Simplex LC Optical Interface

Description

SFP-10G-BX20 Features

• Up to 10.6Gbps data links
• 1270nm DFB Laser and PIN photo-detector for SFP-10G-BX2073
• 1330nm DFB Laser and PIN photo-detector for SFP-10G-BX2037
• Up to 20kmon 9/125µm SMF
• Simplex LC receptacle optical interface compliant
• Hot pluggable
• All-metal housing for superior EMI performance
• RoHS6 compliant (lead free)
• Operating case temperature:

1. Commercial: -5ºC to +70°C
2. Extended: -20ºC to +80°C
3. Industrial: -40ºC to +85°C

Applications

• 10GBASE-LR/LW 10G Ethernet
• 10G Fibre Channel
• 10G SONET
• When the fiber optic pipeline is full and new fibers cannot be laid, but the network needs to be upgraded to 10G bandwidth or connected to nodes within 20km, a single backup fiber optic cable can be used for bidirectional transmission.
• Connect aggregation layer and access layer nodes within a coverage range of 20km, replace dual fiber transmission with single fiber transmission, and improve fiber core utilization.
• Connecting data centers or campus buildings that are 20km apart, replacing more expensive long-distance solutions.

BIDI Transceiver 20km Standards

• Compliant with SFP+ MSA
• Compliant with SFF-8472
• Compatible with IEEE802.3ae

Optical Parameters

Parameter	Symbol	Min.	Typical	Max.	Unit	Note
Transmitter Section
Centre Wavelength	λc	1260	1270	1280	nm	SFP-10G-BX20
		1320	1330	1340	nm	SFP-10G-BX20
Spectral Width(-20dB)	Δλ			1	nm
Side Mode Suppression Ratio	SMSR	30			dB
Average Optical Power (avg.)	Pout	-3		+3	dBm	1
Laser Off Power	Poff	–	–	-30	dBm
Extinction Ratio	ER	3.5	–	–	dB	2
Relative Intensity Noise	RIN	–	–	-128	dB/Hz
Optical Rise/Fall Time	tr / tf		–	50	ps	3
Optical Return Loss Tolerance		–	–	12	dB
Output Optical Eye	Compliant with IEEE802.3ae eye masks when filtered					2
Receiver Section
Receiver Center Wavelength	λc	1320	1330	1340	nm	SFP-10G-BX20
		1260	1270	1280	nm	SFP-10G-BX20
Receiver Sensitivity in Average Power	Sen	-14.4		0.5	dBm	4
Los Assert	LOSA	-30	–	–	dBm
Los Dessert	LOSD	–	–	-16	dBm
Los Hysteresis	LOSH	0.5	–	5	dB
Overload	Pin-max	–	–	0.5	dBm	4
Receiver Reflectance		–	–	-12	dB
Receiver Power (damage)		–	–	1.5	dBm

Notes:

1. The optical power is launched into 9/125µm SMF.
2. Measured with a PRBS 2³¹-1test pattern @10.3125Gbps.
3. Unfiltered, 20-80%. Measured with a PRBS 2³¹-1test pattern @10.3125Gbps.
4. Measured with a PRBS 2³¹-1test pattern @10.3125Gbps, ER=4dB, BER <10^-12.

Ordering Information

Part Number	Product Description
SFP-10G-BX2073	TX 1270nm, RX 1330nm, 10Gbps, 20km, Bi-Directional Simplex LC SFP+ Transceiver, -5ºC ~ +70ºC, With DDM.
SFP-10G-BX2073E	TX 1270nm, RX 1330nm, 10Gbps, 20km, Bi-Directional Simplex LC SFP+ Transceiver, -20ºC ~ +80ºC, With DDM.
SFP-10G-BX2073T	TX 1270nm, RX 1330nm, 10Gbps, 20km, Bi-Directional Simplex LC SFP+ Transceiver, -40ºC ~ +85ºC, With DDM.
SFP-10G-BX2037	TX 1330nm, RX 1270nm, 10Gbps, 20km, Bi-Directional Simplex LC SFP+ Transceiver, -5ºC ~ +70ºC, With DDM.
SFP-10G-BX2037E	TX 1330nm, RX 1270nm, 10Gbps, 20km, Bi-Directional Simplex LC SFP+ Transceiver, -20ºC ~ +80ºC, With DDM.
SFP-10G-BX2037T	TX 1330nm, RX 1270nm, 10Gbps, 20km, Bi-Directional Simplex LC SFP+ Transceiver, -40ºC ~ +85ºC, With DDM.

References

1. “Specifications for Enhanced Small Form Factor Pluggable Module SFP+”, SFF-8431, Rev 4.1, July 6, 2009.
2. “Improved Pluggable Form factor”, SFF-8432, Rev 4.2, Apr 18, 2007.3. “Diagnostic Monitoring Interface for Optical Transceivers” SFF-8472, Rev 10.2, June 1, 2007.
3. IEEE802.3ae 2002.
