Description
MT to LC Patch Cord Features
- Low insertion loss, high return loss
- Good interchangeability, good repeatability, good temperature stability
- MT can be connected to other fiber connectors, such as MT to FC, MT to SC, MT to ST, etc.
- Loose fiber, ribbon fiber or bundled fiber can be provided
- FA-MT ribbon fiber cable assembly can be provideds
- Singlemode and multimode MT ribbon fiber can be provided
- Widely used in fiber optic communication rooms, fiber-to-the-home, fiber optic data transmission, local area network and other equipment
MT to LC Patch Cord Specification
| Item | Elite loss | Standard loss |
| Insertion loss | <0.35 dB | <0.7 dB |
| Return loss | PC>25dB | >25dB |
| Plugging test | 100 times< 0.5 dB | |
| Working temperature | -40℃+80℃ | |
| Fiber type | OM1/OM2/OM3/OM4/OM5 | |
MT to LC Patch Cord Details

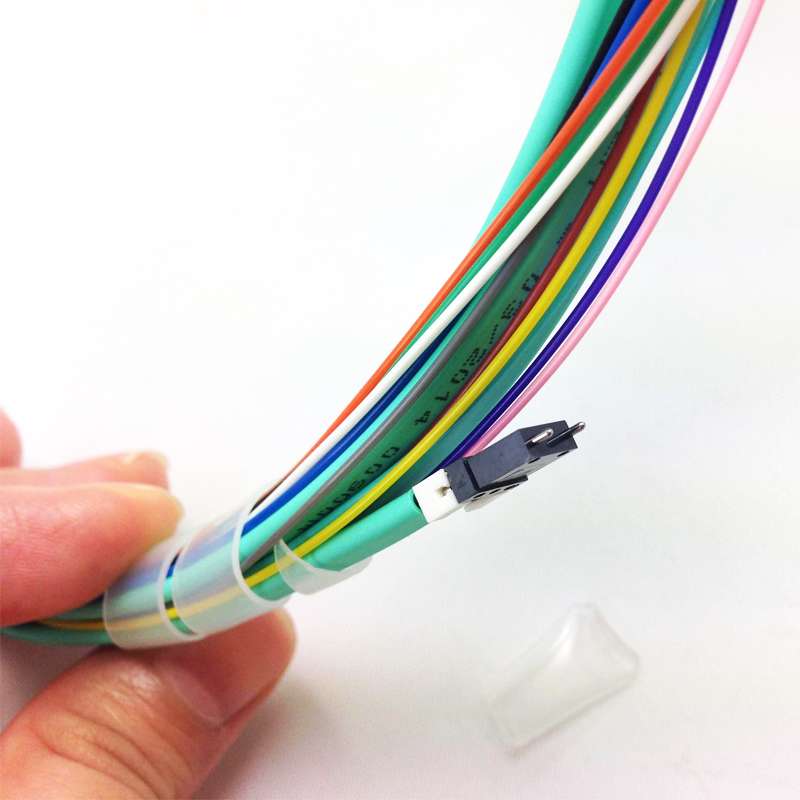

MT male connector is 12 fiber inside with 2 guide pins for precise alignment with the MT female connector, MT female connector is not with guide pins, but guide holes instead.
The MT connector are always used with the MT interface on switch like below, for large bandwidth transmission.
